7 Inch 5200Ah Under Vehicle Inspection System Uvss 6800mW

Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number SA920
Minimum Order Quantity 1 piece
Price $100-500/pc
Packaging Details Carton or wooden case
Delivery Time 5-10 working days after payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 5000 pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Item Name Under Car Inspection Camera Power Consumption 7W
Camera Operate 355 Degree Rotary Display Resolution 800*480 (RGB)
Power 6800mW Display 7inch High Resolution LCD Screen
High Light

7 Inch Under Vehicle Inspection System


5200Ah Under Vehicle Inspection System


6800mW Under Vehicle Checking Camera

Leave a Message
Product Description

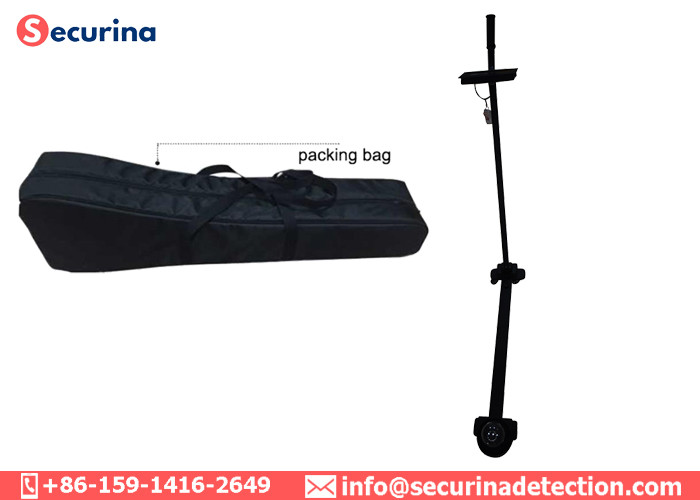

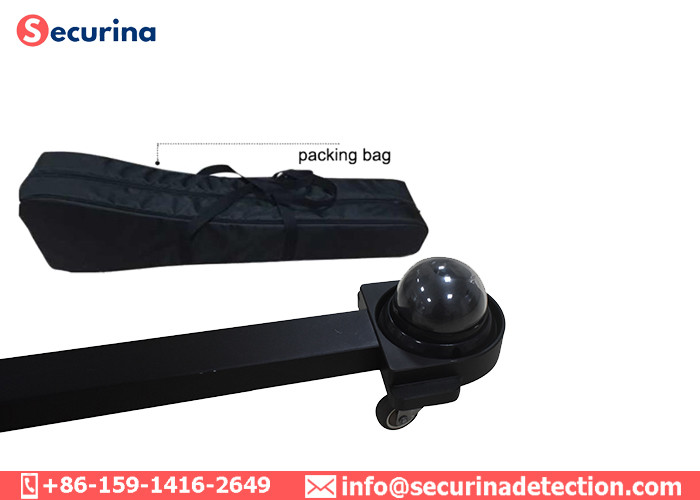

7 Inch High Resolution LCD Display Under Car Inspection Camera Uvss System


7 Inch 5200Ah Under Vehicle Inspection System Uvss 6800mW 0


Under Car Inspection Camera Description:


SA920 Under car inspection camera is mainly used to inspect the overall structure of the vehicle bottom to determine whether the vehicle bottom has been illegally modified, hide suspicious objects or personnel, and can also be used to check the bottom of tables, chairs, beds, file cabinets, etc., high platforms, pipelines, shafts, pipelines Safety inspections are carried out in places where the human body is inconvenient to reach, such as inside the dark box and among the trees.

1. Use a high-capacity lithium battery pack for power supply, with long use time, no charging memory, and small and lightweight. The company can customize the under-vehicle detector with larger capacity and dual battery version according to customer needs;
2. Using a 7-inch high-resolution LCD display, the power consumption is less than 7W, effectively prolonging the system working time without affecting the observation effect;
3. The use of miniature wide-angle high-definition camera, with infrared night vision capability, wider field of view, and clearer;
4. Based on the excellent design concept, this system adopts a two-stage folding structure, the maximum opening angle is 180 degrees, and the angle of the camera can be adjusted electrically. The body of this product is made of 1.3mm high-strength aluminum alloy stamped and formed by high-temperature baking paint. Beautiful and lightweight.


Under Car Inspection Camera Specifications​:



Working environment temperature -20℃ to +60℃
Working current 400mA
Monitor 7 inch Color
Display resolution 800*480(RGB)
Power 6800mW
Start-up time ≤1.0s
Total Weight 3.4Kg
Spreading length 1780mm
Folding length 1020mm
Volume 1020*180*280mm
Packing 1050*210*310mm
Battery capacity 5200Ah
Working voltage 9-12.6V
Continuous working time 6-8 hours


Under Car Inspection Camera Applications:


SA-920 is suitable using in airport security, parking inspection, military area inspection,

sports, big events, local police stations, high-level hotels, and large factories.etc


Under Car Inspection Camera Packaging& Delivery:
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of the customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
    please contact your local authority for questions related to the number of duties or taxes
    you will be responsible for.
