AC220V Under Vehicle Inspection System 21 Inch Monitor FCC With ALPR Camera

  • AC220V Under Vehicle Inspection System 21 Inch Monitor FCC With ALPR Camera
  • AC220V Under Vehicle Inspection System 21 Inch Monitor FCC With ALPR Camera
  • AC220V Under Vehicle Inspection System 21 Inch Monitor FCC With ALPR Camera
Place of Origin Shenzhen ,China
Brand Name Securina
Certification FCC/CE
Model Number SA3000
Minimum Order Quantity 1 Piece
Price $ 999-15999/Piece
Packaging Details Strong Carton Box or Plywooden
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 500 Sets/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
UVSS System Display 21 Inch Monitor UVIS System Accessories ANPR Camera, Portable Scanner, Host
Under Vehicle Scanner Display Resolution 1920 * 1080P UVSS System Resolution 5000*2048 Pixels
Under Vehicle Detector Technology Linear Scanning Scanning Vehicle Width Less Than 4meters
High Light

AC220V Under Vehicle Inspection System

,

ALPR Camera Under Vehicle Inspection System

,

FCC Under Vehicle Screening System
Leave a Message
Product Description

AC220V 50-60Hz Power Supply Mobile Under Vehicle Inspection System With ALPR Camera



Portable Car Undercarriage Bomb Detector Description:



Portable under vehicle scanner mainly adopts to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom. UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources. It can improve the effect of examination greatly. This system makes chassis information clear to identify with the leading scanning technology of computer image identification.



Portable Under Vehicle Scanning System(Portable UVSS) Specification:





Car Bomb Undercarriage Checking System Technical Parameters
The vertical resolution of the image 5000*2048 pixels
Check the width viewing angle < 4 meters
Speed of vehicle < 30km/h with ALPR,< 70km/h without ALPR
Effective Field of View(FOV) less than 170°
Auxiliary light 100W
Weight capacity <20T
Water-proof grade Ip68
Scanning device weight 24KG
Scanning device volume 450mm×400mm×88mm
Communication interface RS232/RS422
Operating Temperature -10℃ to 55℃
Storage temperature -40℃ to +75℃
Operating voltage 110-240V AC, 50-60HZ
Portable UVIS System Host
Brand Grantech (UFO6377H-SP1-953)
CPU Intel® Core(TM) 2 Duo CPU
Memory 2G( optional 4G)
Graphics Inter(R) Gen 5.0 Integrated Graphics Engine
Hard Disk SATA2 Hard Disk 500G
Dual LAN At least one Intel Gigabit
USB2.0 Up to 4 pieces
Monitor 22inch LCD, resolution up to 1920*1080"





Mobile Under Vehicle Inspection Equipment Applications:



1. The entrances and exits for Airports, prisons, customs, and other government departments, large public parking lot etc. to check the prohibited items.

2. Events, exhibitions for the vehicle safety inspection

3. For explosive, military security checking

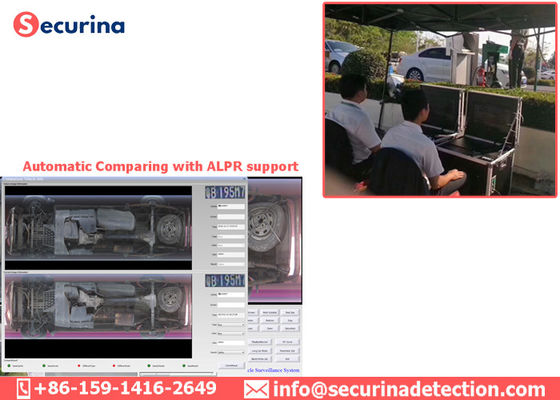

Portable Under Car Bomb Detector SA3000 real system photo:

AC220V Under Vehicle Inspection System 21 Inch Monitor FCC With ALPR Camera 0
