Multiple Scene 50T Under Vehicle Inspection System Stainless Steel 24VDC

Place of Origin Shenzhen ,China
Brand Name Securina
Certification FCC/CE
Model Number SA3300
Minimum Order Quantity 1 Piece
Price $ 5999-15999/Piece
Packaging Details Strong Carton Box or Plywooden
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 500 Sets/Month
Product Details
UVIS System Materials Stainless Steel UVSS System Load Bearing Weight 50Tons
Under Vehicle Scanning System Embedded Part Size 1100(L)x350(W)mm Under Vehicle Inspection System Water-proof Level IP68
Power Supply 24VDC Vehicle Speed 1-60km/h
High Light

Multiple Scene Under Vehicle Inspection System


50T Under Vehicle Inspection System


24VDC Under Vehicle Inspection System

Leave a Message
Product Description

Stainless Steel Under Vehicle Scanner System UVSS System 50T Load Bearing Weight


Multiple Scene 50T Under Vehicle Inspection System Stainless Steel 24VDC 0


Under Vehicle Checking System Description:


Securina SA3300 Under Vehicle Inspection System is the fixed solution for the fully automatic identification of threats or modifications to a vehicle's undercarriage. It can quickly and accurately identify threats, contraband objects, and stowaways who are hidden at the bottom.

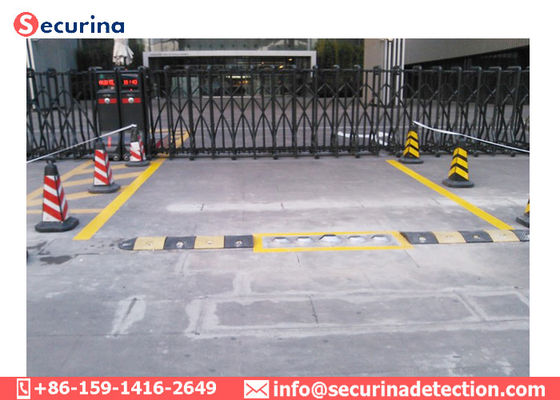

Securina SA3300 adopts an embedded installation way. SA3300 Under Vehicle Inspection Equipment is strictly designated on the conception of maintenance-free and application in all weather with IP68 Water-proof grade. These make sure the system can work steadily in any climate.


Under Vehicle Car Bomb Searching System Specification:


Features 1 Automatic digital line scan camera, with high-resolution and clarity of the image.
2 The complete image of under vehicle scanning, without any omissions,
And the image is clear, complete, no distortion can be clearly observed that
The object is not less than 2mm in diameter.
3 Preparation of inspection processes to meet a variety of on-site needs.
4 Multiple scene image monitoring, recording function.
5 Multi-language user interface design.
6 Strong scalability to easily achieve a variety of system linkage control.
7 (Optional)ALPR(Automatic Licence Plate Recognition)
(E. G.: Anti-collision system, barrier, etc. ).
8 (Optional) Multiple devices networked control functions.
General Specifications
Technical parameters 1 Vertical resolution of the image: 5000*2048 pixels
2 Check the width viewing angle: < 4 meters
3 Speed of vehicle: < 30km/h with ALPR(Automatic Licence Plate Recognition)
< 70km/h without ALPR(Automatic Licence Plate Recognition)
4 Effective Field of View(FOV): Less than 170°
5 Auxiliary light: 100W
6 Weight capacity: <20T
7 Water-proof grade: IP68
8 Scanning device weight: 24KG
9 Scanning device volume: 450mm× 400mm× 88mm
10 Communication interface: RS232/RS422
11 Operating Temperature: -10degree to 55degree
12 Storage temperature: -40degree to +75degree
13 Operating voltage: 110-240V AC, 50-60Hz
System host
System host
1 Brand: Grantech (UFO6377H-SP1-953)
2 CPU: Intel® Core(TM) 2 Duo CPU
P8600@2.4GHz or higher
3 Memory: 2G( optional 4G)
4 Graphics: Intel(R) Gen 5.0 Integrated Graphics Engine
5 Hard Disk: SATA2 Hard Disk 500G
6 Dual LAN (At least one Intel Gigabit)
7 USB2.0 (Up to 4 pieces)
8 Monitor: 22inch LCD, resolution up to 1920*1080

SA3300 Under Vehicle Monitoring System Advantages:


1. Multi-entry management model to manage and count the number of incoming and outgoing vehicles

2. Automatic digital CCD liner array scanning, high resolution scanning images of the chassis of all kinds of vehicles

3. High degree of automation, the use of Windows7 operating system, for no technical knowledge of the safety inspector for easy to use

4. The detection will be completed without stopping the vehicle, which can adapt to different vehicle driving speeds and can reach up to 60 km/h, effectively improving detection efficiency and avoiding traffic congestion


SA3300 Car Undercarriage Searching System working flow:

Multiple Scene 50T Under Vehicle Inspection System Stainless Steel 24VDC 1Multiple Scene 50T Under Vehicle Inspection System Stainless Steel 24VDC 2
