UVSS Camera Under Vehicle Inspection Equipment 100W 21in LCD RS422

Place of Origin Shenzhen ,China
Brand Name Securina
Certification FCC/CE
Model Number SA3000
Minimum Order Quantity 1 Piece
Price $ 999-15999/Piece
Packaging Details Strong Carton Box or Plywooden
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 500 Sets/Month
Product Details
Portable Under Vehicle Detector Display 21inch Color LCD Screen UVIS System Accessories ANPR Camera, Portable Scanner, Host
Portable UVSS System Working CurrentWorking Current 1920 * 1080P Mobile UVSS System Working Temperature 5000*2048 Pixels
Under Vehicle Detector Technology Linear Scanning Scanning Vehicle Width Less Than 4meters
High Light

UVSS Camera Under Vehicle Inspection Equipment


100W Under Vehicle Inspection Equipment


RS422 Under Vehicle Scanner System

Leave a Message
Product Description

21 Inch Color LCD Screen Portable Under Vehicle Inspection Equipment UVSS Camera


Portable Car Undercarriage Bomb Detector Description:


Portable Qualified Under Vehicle Surveillance System UVSS for under vehicle security checking
Under vehicle surveillance systems mainly adopt to inspect the beneath part of a variety of vehicles. It can quickly and accurately
identify threats/ contraband/ smuggling of persons hiding at the bottom. UVSS greatly improved vehicle safety inspection speed
and accuracy, reduce investment in human resources.


Portable UVSS system SA3000 Advantages:

  1. Easily Operate with normal computer keyboard
  2. Unidirectional scanning without radiation
  3. Date and time display on 21inch color LCD monitor
  4. Fast detection that can get vehicle chassis image in 1 second
  5. Load max bearing: 30Tons
  6. Auto infrared trigger condition scanning
  7. Dynamic mode imaging of linear array CC scanning technology


Portable Under Vehicle Scanning System(Portable UVSS) Specification:



Car Bomb Undercarriage Checking System Technical Parameters
The vertical resolution of the image 5000*2048 pixels
Check the width viewing angle < 4 meters
Speed of vehicle < 30km/h with ALPR,< 70km/h without ALPR
Effective Field of View(FOV) less than 170°
Auxiliary light 100W
Weight capacity <20T
Water-proof grade Ip68
Scanning device weight 24KG
Scanning device volume 450mm×400mm×88mm
Communication interface RS232/RS422
Operating Temperature -10℃ to 55℃
Storage temperature -40℃ to +75℃
Operating voltage 110-240V AC, 50-60HZ
Portable UVIS System Host
Brand Grantech (UFO6377H-SP1-953)
CPU Intel® Core(TM) 2 Duo CPU
Memory 2G( optional 4G)
Graphics Inter(R) Gen 5.0 Integrated Graphics Engine
Hard Disk SATA2 Hard Disk 500G
Dual LAN At least one Intel Gigabit
USB2.0 Up to 4 pieces
Monitor 22inch LCD, resolution up to 1920*1080"



Mobile Under Vehicle Inspection Equipment Applications:


1. The entrances and exits for Airports, prisons, customs, and other government departments, large public parking lot etc. to check the prohibited items.

2. Events, exhibitions for the vehicle safety inspection

3. For explosive, military security checking

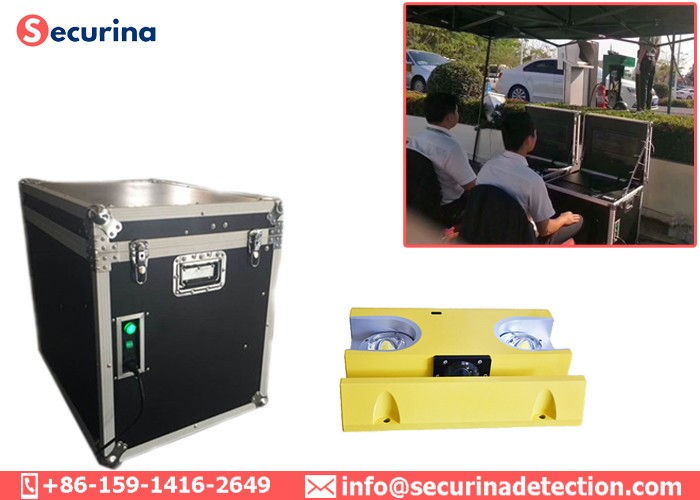

Portable Under Car Bomb Detector SA3000 real system photo:

UVSS Camera Under Vehicle Inspection Equipment 100W 21in LCD RS422 0
