Embedded Line CCD UVSS System Camera Vehicle Screening 100W For Car Bomb Detector

Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number SA3300
Minimum Order Quantity 1 piece
Price $ 5999-15999/Piece
Packaging Details Carton or wooden case
Delivery Time 5-10 working days after payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 5000 pieces/month
Product Details
Item Name UVSS Camera Application Car Bomb Detector
Embedded Size 1200*350*300mm Communication Port DC24V, 120 W
Operating Temperature -20℃~+60℃ Scanning Image Complete Of Chassis
High Light

under vehicle inspection system


under vehicle scanning system

Leave a Message
Product Description

Embedded Line CCD UVSS Camera Vehicle Screening System for Car Bomb Detector
Embedded Line CCD UVSS System Camera Vehicle Screening 100W For Car Bomb Detector 0

UVSS Camera Description:


Under Vehicle Surveillance System Digital Color UVSS SA3300 is an effective and reliable surveillance system for inspecting the undercarriage of vehicles, by presenting a clear and clean image of the underside of vehicles when it is driven over the screening unit. It exposes the undercarriage from all makes and models for explosive devices, suspicious objects, contraband which includes drug and personnel.

UVSS Camera Technical Parameters​:


 Vertical resolution of the image

 5000*2048 pixels

 Check the width viewing angle

 < 4 meters

 Speed of vehicle  < 30km/h with ALPR,< 70km/h without ALPR

 Effective Field of View(FOV)

 Less than 170°

 Auxiliary light


 Weight capacity


 Water-proof grade


 Scanning device weight


 Scanning device volume  450mm×400mm×88mm
 Communication interface  RS232/RS422

 Operating Temperature

 -10℃ to 55℃

 Storage temperature

 -40℃ to +75℃

 Operating voltage

 110-240V AC, 50-60HZ

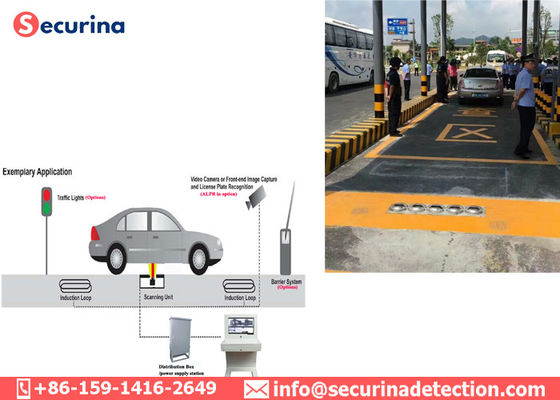

UVSS Camera Working Process:
1. When the vehicle is ready to enter the interior of the site, the lifting column/ flip barrier of the A door

    is lowered, the A door is opened, and the vehicle enters the security inspection passage
2. The vehicle passes through the induction coil of the scanner, and the device starts to scan

    the vehicle chassis, simultaneously captures the license plate, leaves the induction coil,

    and the vehicle scan ends

3. After the vehicle scan is completed, the vehicle license plate information and entry time are

    automatically recorded, and the vehicle is parked in the area to be inspected,

    waiting for the vehicle inspector to confirm the result

4. After confirming that the inspection is correct, manually control the lifting column to descend,

    the B door opens, and the vehicle can enter the interior of the site

Securina professional in manufacturing:


1. Airport security screening equpiments, like x-ray baggage scanner, security metal detectors, handheld metal detector, under vehicle surveillance system, search camera, search mirror, liquid scanner, explosive detector, bomb blanket, bomb container, explosion suppression device, etc.

2. Industrial metal detector, conveyor metal detetor, food metal detector, nail detector, needle detector for quality control in factory.


Securina Major markets:


Securina is a manufacturer / factory /supplier / Exporter of security screening system and metal detectors in China, exporting products to Mongolia, Singapore, Malaysia, Indonesia, Myanmar, Thailand, Laos, Cambodia, Vietnam, Brunei, Philippines, Iran, Iraq, Turkey, Syria, Jordan, Lebanon, Israel, Palestine, Saudi Arabia, Yemen, United Arab Emirates, Qatar, Kuwait, Bahrain, Greece, Cyprus, Egypt, India, Pakistan, Bangladesh, Afghanistan, Sri Lanka, Maldives, Nepal, Bhutan, Kazakhstan, Uzbekistan, Turkmenistan, Tajikistan, Kyrgyzstan, Russia, Ukraine, Belarus, Georgia, Azerbaijan, Armenia, Moldova, Poland, Lithuania, Estonia, Latvia, Czech Republic, Slovakia, Hungary, Slovenia, Croatia, Bosnia and Herzegovina, Montenegro, Serbia, Romania, Bulgaria, Macedonia, Albania.etc



UVSS Camera Product Pictures:


Embedded Line CCD UVSS System Camera Vehicle Screening 100W For Car Bomb Detector 1
