UVIS Under Vehicle Surveillance System LED Light Source To Scan Under Belly

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: Securina
Certification: FCC/CE
Model Number: SA3300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: $ 5999-15999/Piece
Packaging Details: Strong Carton Box or Plywooden
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 Sets/Month

Detail Information

Product Name: Fixed Underground UVSS Under Vehicle Scanning System Camera View: > 170°
Resolution: 5000*2048 Pixels Monitor: 22inch LCD, Resolution Up To 1920*1080
Size: 1200mm X 350mm Illumination: LED Light Source
High Light:

under vehicle scanning system

,

car surveillance equipment

Product Description

UVSS / UVIS Under Vehicle Surveillance and Inspection System  to Scan Under Belly of Vehicles

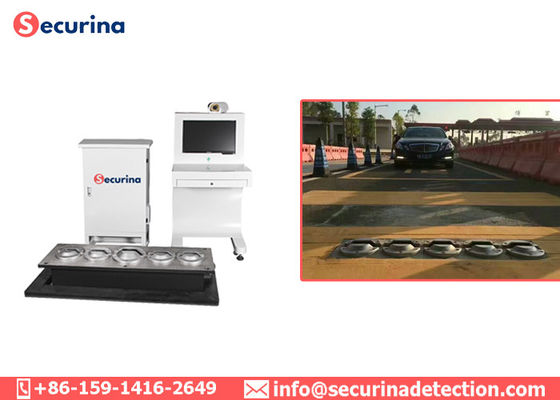

UVIS Under Vehicle Surveillance System LED Light Source To Scan Under Belly 0



UVSS / UVIS Under Vehicle Surveillance and Inspection System Overview



The vehicle chassis inspection system adopts self-developed and industry-leading ultra-high frame rate intelligent area scanning camera to monitor all vehicle chassis in real time, effectively preventing car bottom bomb, smuggling, possession of drugs, jailbreak, illegal modification, oil leakage, etc., saving manpower and material resources. Effectively improve the speed of security inspections and prevent traffic congestion



UVSS / UVIS Under Vehicle Surveillance and Inspection System  Characteristics



1.  Auto bottom image capture: When the vehicle passes the vehicle bottom scanner at a speed of 1-65km/h, the vehicle passes through

After that, the system displays the image in 1S, when the vehicle is stationary in the image capture area of ​​the vehicle bottom scanner.

After the time has passed and then passed through the bottom scanner, the image of the vehicle bottom is complete.

2.  Automatic image storage and deletion function: save no less than 10,000 images, automatically delete expired images

3.  Image quality adjustment function: It can produce saturation, contrast, equalization and sharpening adjustment for the bottom or license plate image; and zoom in and out, and the magnification is up to 16 levels, and can be enlarged and displayed locally.



UVSS / UVIS Under Vehicle Surveillance and Inspection System  Features



1. System interface language: can be customized

2. Display resolution: adapt to various display resolutions

3. Vehicle bottom image data transmission interface: network RJ45

4. Scene image display: ≥ 1 way

5. Image retrieval function check: It can retrieve the image of the underbody and license plate by the date, time, license plate number and other information

6. Car bottom image resolution: 12000X 6144 pixel



UVSS / UVIS Under Vehicle Surveillance and Inspection System Technical Parameters



USB 2.0

Up to 2 pieces

Vehicle image storage format

BMP or JPEG

Suggest speed

less than 30km/h

Operating Temperature

-25 ºC to +60 ºC

Vehicle Image scaling

16 times

Material

Stainless Steel

Weight capacity

50T

Power Supply

24VDC, 3A

LED light service life

50,000 hours



UVSS / UVIS Under Vehicle Surveillance and Inspection System  Operation Principles



1. The system consists of a speed measurement module consisting of a control card and a sensor

2.  After the system measures the vehicle speed, the information is fed back to the control card, and the control card outputs a pulse signal to control the camera to trigger the acquisition. This module can effectively prevent longitudinal stretching and contraction of images caused by different speeds

3.  It has the functions of automatic license plate recognition, license plate number recording and comparison.

In order to increase the effectiveness of license plate recognition, the module does the following processing: the line camera function informs the area camera function to store a picture in advance as a license plate recognition reserved picture to prevent the license plate recognition from having no result. If the result is identified, the current identification is used. The image replaces the pre-stored image

4. The vehicle bottom scanning module system consists of a Gigabit Ethernet port line camera, a special fisheye lens with a shooting angle greater than 150 degrees, and an output pulse control card GPIO, four sets of sensors and LED auxiliary light source



UVSS / UVIS Under Vehicle Surveillance and Inspection System Application



1. Airports, prisons, customs and other government departments, and large public parking lot entrances and exits

are used to check whether there are prohibited items in the vehicles are in and out

2. large-scale activities, exhibitions at the entrance and exit of the vehicle for security inspection

3. For security inspection, explosion protection, security inspection of the bottom of the vehicle



UVSS / UVIS Under Vehicle Surveillance and Inspection System  Showroom



UVIS Under Vehicle Surveillance System LED Light Source To Scan Under Belly 1
