AI Facial Recognition Thermal Fever Detection System With Tripod Or Wall Mounted Installation

Product Details:
Place of Origin: Guangdong, China
Brand Name: Securina
Certification: FCC, CE
Model Number: SA230
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD100-999.0/set
Packaging Details: carton box
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000 sets per month

Detail Information

Function: Facial Recognition Thermal Fever Detection System Display: 8 Inch
Face Recognition Camera: Binocular Camera, Support In Vivo Detection Body Temperature Measurement Accuracy: ±0.5(ºC)
Temperature Measuring Distance: 50cm Installation: Tripod Stand Or Wall Mounted
High Light:

Thermal Fever Detection Device

,

Infrared Thermal Imaging Thermometer

Product Description

AI Facial Recognition Thermal Fever Detection System With Tripod Or Wall Mounted Installation

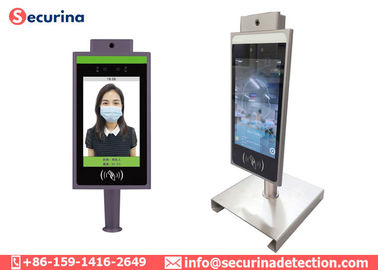

AI Facial Recognition Thermal Fever Detection System With Tripod Or Wall Mounted Installation 0



This face recognition and thermal detection can detect elevated skin temperatures brought on by various external causes,support access control system,and time attendance 30000pcs face picture for white list capacity,1920*1080p resolution.

Can be widely used in aisles, gates, gates and other controlled entrances or areas. If Temp is more than 37.3℃,will be voice alarm and red words alards,Temp will be show on screen. If Temp is ok,will show green and temperature normal. All display and voice in English,can update Language according to customer requirements.



Introduction:

Thermometric face recognition is a kind of biometric recognition technology based on human facial feature information for identity recognition. Its uniqueness and good characteristics that are not easy to be copied provide the necessary premise for identity authentication. The current temperature of pedestrians is also a prerequisite for whether to open the gate. Face recognition pedestrian channel gate system is the combination of face recognition technology and pedestrian channel system, through the face recognition as the key to open the pedestrian channel. It not only saves you the trouble of forgetting to bring a key or card, but also saves a lot of costs because the face recognition walkway gate system does not need any medium to open the door, such as personnel changes do not need to replace the IC card, etc., only need to re-enter the person Just register the face information;



The temperature measuring face recognition all-in-one machine adopts the international advanced neural network algorithm (CNN), which is a product formed after tens of millions of algorithm trainings. It integrates functions such as image acquisition, face detection, face tracking and face comparison. , Not only high recognition rate but also fast recognition speed. The offline dynamic portrait recognition machine does not require pedestrians to cooperate with direct recognition, and does not require computer control. Pedestrians can also be recognized in motion, which greatly improves the ease of use of portrait recognition. The product can be applied to any channel gate (wing gate, swing gate, three-roll gate, etc.), access control and advertising gates that are commonly available in the market, and can directly output the opening signal and Wiegand signal; it can be widely used in its own doorway, community access control, Scenes such as school entrance and exit, Daozha passage, office building, subway, airport, high-speed rail, etc.



Specifications of SA230:

Hardware
CPU RK3288
Operation system andriod
storage 8GB
Image device 1/2.7" CMOS
Len 4.3mm
Camera
Camera Binocular camera, support in vivo detection
pixels 2 million pixels, 1920*1080
Sensitometry Color 0.01Lux @F1.2(ICR);W/B 0.001Lux @F1.2
SNR ≥50db(AGC OFF)
Wide dynamic range ≥80db
Face recognition performance
Recognition height 1.2-2.2m adjustable
Recognition distance 0.5-2m
Angle of view 40 degrees up and down
Recognition time <500ms
Function Support 30,000 face comparison libraries
Body Temperature Measurement
Temperature range 28-45(ºC)
Temperature accuracy ±0.5(ºC)
Detection distance 0.5m
Response time <300ms
Interface of ports
Network port RJ45 10M/100M Adaptive Ethernet port
Wiegand interface Wiegand input and output are supported, and wiegand 26 and 34 are supported
Alarm output 1 way switching output
USB 1 USB interface (external ID card reader)
Basic specification
Power supply DC12V/3A
Power 20W(MAX)
Operation temperature 0ºC ~+40ºC
Operation humidity 5~90% Relative humidity, no condensation
Size 135.2(W) * 79(T) *365.3(H)mm
Weight 1.6kg
Column diameter 33mm

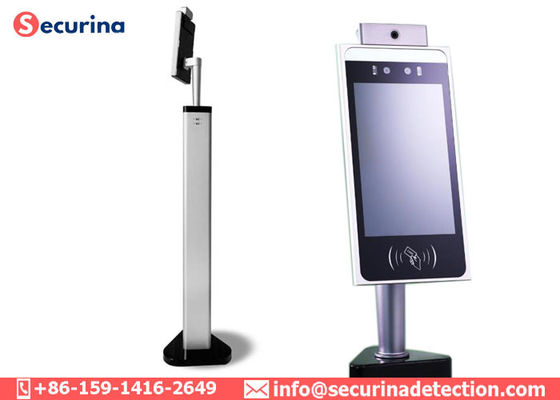

AI Facial Recognition Thermal Fever Detection System With Tripod Or Wall Mounted Installation 1AI Facial Recognition Thermal Fever Detection System With Tripod Or Wall Mounted Installation 2
