AI Temperature Detection Face Recognition Terminal For Access Control

Product Details:
Place of Origin: Guangdong, China
Brand Name: Securina
Certification: FCC, CE
Model Number: SA230
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD100-999.0/set
Packaging Details: carton box
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000 sets per month

Detail Information

Function: Access Control Technology: AI Face Recognition
Face Recognition Camera: Binocular Camera, Support In Vivo Detection Body Temperature Measurement Accuracy: ±0.5(ºC)
Temperature Measuring Distance: 50cm Power Supply: DC12V /3A
High Light:

20W Face Recognition Terminal

,

500ms Face Recognition Terminal

,

Infrared Thermal Imaging Thermometer

Product Description

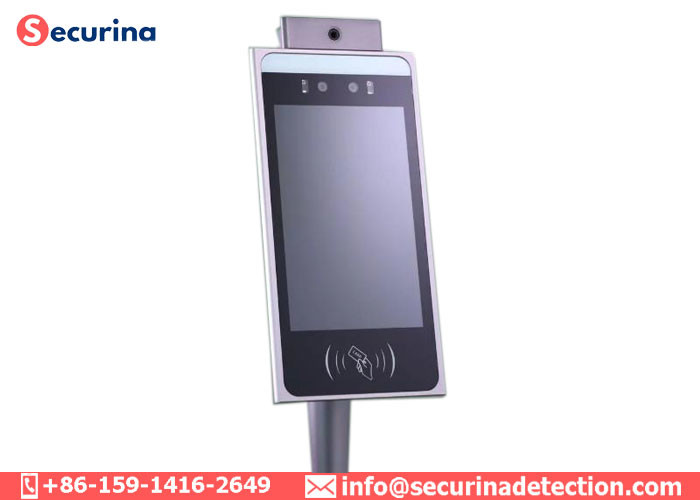

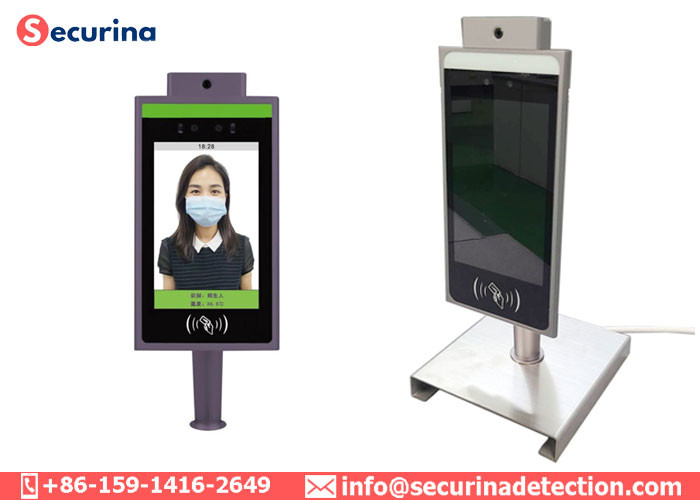

AI Technology Temperature Detection Face Recognition Terminal For Access Control



AI Temperature Detection Face Recognition Terminal For Access Control 0



Temperature detection face recognition terminal, used for personnel entry and exit management, door opening and clocking attendance. When the attendance person enters and leaves the site, according to the equipment use rules, the face card operation is performed on the device by identifying the device, and cooperates with the opening control of the gate or access control device to realize the management of personnel entry and exit.


At the same time, the device is equipped with a temperature detector, which can monitor the body temperature of the recognized person while performing face recognition, and obtain the person's body temperature information, so as to determine whether the person is sick or have health problems. It can be widely used in medical and health care. In the field, it can effectively monitor the abnormal fever and abnormal rise in body temperature caused by the new type of coronavirus caused by the new type of pneumonia.


Three core functions:

  1. Face recognition: Built-in database, can complete the comparison of captured faces in real time locally, generate a log of the comparison results, and upload the back-end database
  2. Access control: Based on the result of face recognition, control the access switch to realize personnel management in the control area
  3. Body temperature detection: The device has a built-in body temperature monitoring module, which can monitor the body temperature at the same time during face recognition to obtain body temperature related data



Advantages:



1. Automatic alarm for abnormal temperature;
If the person with abnormal temperature is recognized, the device's fill light turns red, the interface display turns red, and the voice broadcast temperature is abnormal.
2. Dynamic binocular in vivo detection;
The device is equipped with wide dynamic binocular live detection, which completely solves the deception of various photos on various carriers.
3. Support night infrared, RGB double fill lamp;
Built in night infrared and RGB double fill light, automatic fill light during face recognition, and can recognize face quickly and clearly at night and in dark and no light environment.
4. The scene of temperature measurement can be photographed and saved;
During face recognition temperature measurement, the equipment automatically captures the photos of the on-site personnel and uploads them to the system, which can be queried in the system.



Specifications of SA230:

Hardware
CPU RK3288
Operation system andriod
storage 8GB
Image device 1/2.7" CMOS
Len 4.3mm
Camera
Camera Binocular camera, support in vivo detection
pixels 2 million pixels, 1920*1080
Sensitometry Color 0.01Lux @F1.2(ICR);W/B 0.001Lux @F1.2
SNR ≥50db(AGC OFF)
Wide dynamic range ≥80db
Face recognition performance
Recognition height 1.2-2.2m adjustable
Recognition distance 0.5-2m
Angle of view 40 degrees up and down
Recognition time <500ms
Function Support 30,000 face comparison libraries
Body Temperature Measurement
Temperature range 28-45(ºC)
Temperature accuracy ±0.5(ºC)
Detection distance 0.5m
Response time <300ms
Interface of ports
Network port RJ45 10M/100M Adaptive Ethernet port
Wiegand interface Wiegand input and output are supported, and wiegand 26 and 34 are supported
Alarm output 1 way switching output
USB 1 USB interface (external ID card reader)
Basic specification
Power supply DC12V/3A
Power 20W(MAX)
Operation temperature 0ºC ~+40ºC
Operation humidity 5~90% Relative humidity, no condensation
Size 135.2(W) * 79(T) *365.3(H)mm
Weight 1.6kg
Column diameter 33mm



AI Temperature Detection Face Recognition Terminal For Access Control 1
