China Walk Through Security Detector manufacturer

20W Binocular Camera Face Recognition Temperature Measurement System For Access Control

Product Details:
Place of Origin: Guangdong, China
Brand Name: Securina
Certification: FCC, CE
Model Number: SA230
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD100-999.0/set
Packaging Details: carton box
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000 sets per month

Detail Information

Function: Staff Management Technology: AI Face Recognition
Face Recognition Camera: Binocular Camera, Support In Vivo Detection Body Temperature Measurement Accuracy: ±0.5(ºC)
Fever Alarming Set: Available
High Light:

20W Face Recognition Thermometer


Binocular Camera Face Recognition Thermometer


Touchless Temperature Fever Scanner

Product Description

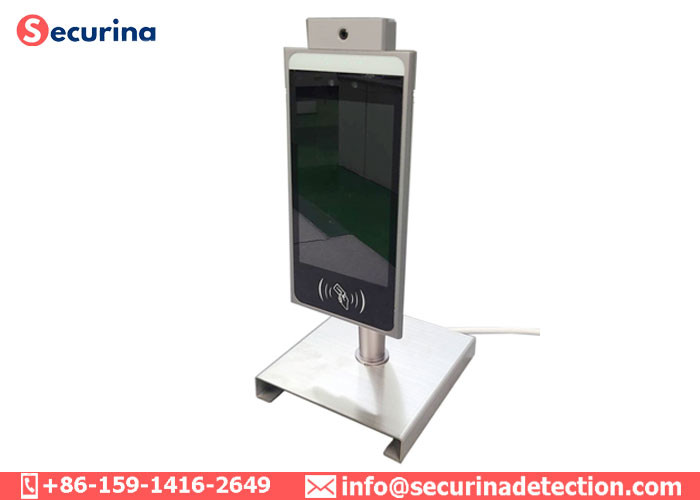

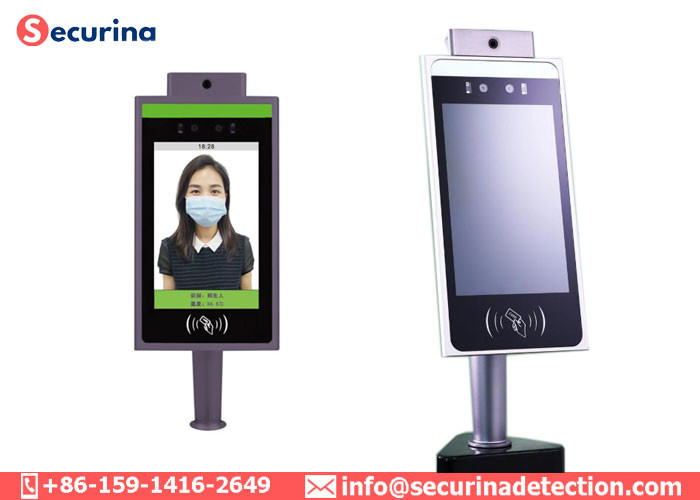

Binocular Camera Face Recognition Temperature Measurement System For Access Control


20W Binocular Camera Face Recognition Temperature Measurement System For Access Control 0


The face recognition temperature measurement terminal system is a terminal product developed by integrating face recognition algorithms, mask detection technology, and infrared body temperature detection technology.


The intelligent face recognition temperature measurement system can record the information of incoming and outgoing personnel with real names, and support front-line prevention and control screening and isolation management. The face recognition system can record the travel records of the personnel, and at the same time perform data analysis to protect people with abnormal body temperature in a timely manner, and better intelligently analyze the travel trajectory and other effective information of the personnel, which can provide effective data support.


The intelligent face recognition temperature measurement system is through the face access control system. Residents only need to stand in front of the screen. The system can quickly detect whether the mask is worn correctly, whether the body temperature is abnormal, etc., and the system can detect it and record it in big data. Carrying out inspections is smart and fast, and can identify identities quickly, effectively and accurately, greatly improving the efficiency of passage and providing more effective assistance for epidemic prevention and control.




1. Automatic alarm for abnormal temperature;
If the person with abnormal temperature is recognized, the device's fill light turns red, the interface display turns red, and the voice broadcast temperature is abnormal.
2. Dynamic binocular in vivo detection;
The device is equipped with wide dynamic binocular live detection, which completely solves the deception of various photos on various carriers.
3. Support night infrared, RGB double fill lamp;
Built in night infrared and RGB double fill light, automatic fill light during face recognition, and can recognize face quickly and clearly at night and in dark and no light environment.
4. The scene of temperature measurement can be photographed and saved;
During face recognition temperature measurement, the equipment automatically captures the photos of the on-site personnel and uploads them to the system, which can be queried in the system.


Specifications of SA230:

CPU RK3288
Operation system andriod
storage 8GB
Image device 1/2.7" CMOS
Len 4.3mm
Camera Binocular camera, support in vivo detection
pixels 2 million pixels, 1920*1080
Sensitometry Color 0.01Lux @F1.2(ICR);W/B 0.001Lux @F1.2
SNR ≥50db(AGC OFF)
Wide dynamic range ≥80db
Face recognition performance
Recognition height 1.2-2.2m adjustable
Recognition distance 0.5-2m
Angle of view 40 degrees up and down
Recognition time <500ms
Function Support 30,000 face comparison libraries
Body Temperature Measurement
Temperature range 28-45(ºC)
Temperature accuracy ±0.5(ºC)
Detection distance 0.5m
Response time <300ms
Interface of ports
Network port RJ45 10M/100M Adaptive Ethernet port
Wiegand interface Wiegand input and output are supported, and wiegand 26 and 34 are supported
Alarm output 1 way switching output
USB 1 USB interface (external ID card reader)
Basic specification
Power supply DC12V/3A
Power 20W(MAX)
Operation temperature 0ºC ~+40ºC
Operation humidity 5~90% Relative humidity, no condensation
Size 135.2(W) * 79(T) *365.3(H)mm
Weight 1.6kg
Column diameter 33mm


20W Binocular Camera Face Recognition Temperature Measurement System For Access Control 1
