8 Inch Digital Infrared Thermal Imaging Thermometer Non-Contact Temperature Detection With Face Recognition

Place of Origin Guangdong, China
Brand Name Securina
Certification FCC, CE
Model Number SA230
Minimum Order Quantity 1 set
Price USD100-999.0/set
Packaging Details carton box
Delivery Time 5-7 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Function Infrared Thermal Imaging Thermometer Non-Contact Temperature Detection Display 8 Inch
Face Recognition Camera Binocular Camera, Support In Vivo Detection Body Temperature Measurement Accuracy ±0.5(ºC)
Temperature Measuring Distance 50cm Power Supply DC12V /3A
High Light

20W Face Recognition Thermometer

,

4.3mm Len Camera Thermometer

Leave a Message
Product Description

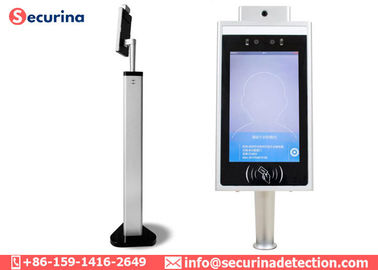

8 Inch Digital Infrared Thermal Imaging Thermometer Non-Contact Temperature Detection With Face Recognition



8 Inch Digital Infrared Thermal Imaging Thermometer Non-Contact Temperature Detection With Face Recognition 0



This face recognition and thermal detection can detect elevated skin temperatures brought on by various external causes,support access control system,and time attendance 30000pcs face picture for white list capacity,1920*1080p resolution.

Can be widely used in aisles, gates, gates and other controlled entrances or areas. If Temp is more than 37.3℃,will be voice alarm and red words alards,Temp will be show on screen. If Temp is ok,will show green and temperature normal. All display and voice in English,can update Language according to customer requirements.



Precautions:

- The temperature measuring device should be used in a room with a room temperature between 10 ℃-40 ℃. Do not install the temperature measuring device under the vent, and ensure that there is no heating source within 3 meters;

- Personnel entering the room from a cold outdoor environment will affect the temperature measurement accuracy. The forehead temperature test should be performed after the forehead is unobstructed for three minutes and the temperature is stable;

- The temperature read by the temperature measuring device is the temperature in the forehead area. When there is water, sweat, oil or thick makeup on the forehead or the elderly have more wrinkles, the read temperature will be lower than the actual temperature. Make sure there is no hair or clothing covering this area.



Specifications of SA230:

Hardware
CPU RK3288
Operation system andriod
storage 8GB
Image device 1/2.7" CMOS
Len 4.3mm
Camera
Camera Binocular camera, support in vivo detection
pixels 2 million pixels, 1920*1080
Sensitometry Color 0.01Lux @F1.2(ICR);W/B 0.001Lux @F1.2
SNR ≥50db(AGC OFF)
Wide dynamic range ≥80db
Face recognition performance
Recognition height 1.2-2.2m adjustable
Recognition distance 0.5-2m
Angle of view 40 degrees up and down
Recognition time <500ms
Function Support 30,000 face comparison libraries
Body Temperature Measurement
Temperature range 28-45(ºC)
Temperature accuracy ±0.5(ºC)
Detection distance 0.5m
Response time <300ms
Interface of ports
Network port RJ45 10M/100M Adaptive Ethernet port
Wiegand interface Wiegand input and output are supported, and wiegand 26 and 34 are supported
Alarm output 1 way switching output
USB 1 USB interface (external ID card reader)
Basic specification
Power supply DC12V/3A
Power 20W(MAX)
Operation temperature 0ºC ~+40ºC
Operation humidity 5~90% Relative humidity, no condensation
Size 135.2(W) * 79(T) *365.3(H)mm
Weight 1.6kg
Column diameter 33mm

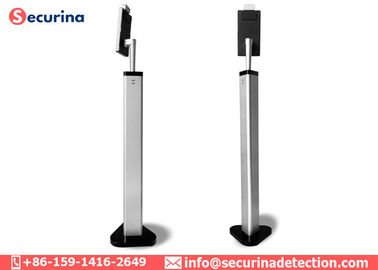

8 Inch Digital Infrared Thermal Imaging Thermometer Non-Contact Temperature Detection With Face Recognition 1
