80KV X Ray Baggage Machine 0.22m/S Conveyor Belt For Security Inspection

Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number SA5030A
Minimum Order Quantity 1 set
Price $3999 - $9999/set
Packaging Details Carton or wooden case
Delivery Time 5-10 working days after payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 5000 sets/month
Product Details
X-ray Introscopes Description Color Scanning Image Baggage Scanner X-ray Baggage Machine Tunnel Size 50×30cm With Model SA5030A
Baggage X-ray Scanner Conveyor Speed 0.22m/s Small X-ray Machine Penetration 8-10mm Steel
X-ray Generator Voltage 80KV Hand Baggage Inspection Machine Monitor 17inch LCD Screen
High Light

80KV X Ray Baggage Machine


0.22m/S X Ray Baggage Machine


Conveyor Belt Image Baggage Scanner

Leave a Message
Product Description

Color Image 5030 X Ray Baggage Machine For Small Package Security Inspection

80KV X Ray Baggage Machine 0.22m/S Conveyor Belt For Security Inspection 0


X-ray security screening equipment is widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places. X-ray Baggage Scanner Model characteristics and configuration: All parts imported, clear image, strong penetrating power, long service life, using the latest international standards.


X-ray Baggage Scanner Securina SA5030A adopts advanced X-ray low-dose penetration scanning technology. X-ray Baggage Scanner penetration force can reach 8-10 mm steel plate. X-ray Baggage Scanner can pack small pieces of goods through luggage bags smaller than 300(H)*500(W) mm.


SA5030A Small Bag X Ray Inspection Equipment Specifications:


X Ray source of x ray baggage scanner: Channel size: 500 (width) x 300 (high) mm;
Penetration force: 43mm steel plate; Conveyor belt speed: 0.22m/s;
Tube voltage: 80 KV (adjustable); Maximum load of conveyor belt: 100Kg;
Tube current: 0.4-1.2 mA (adjustable); Film safety: ISO1600 film safety;
The divergence angle of the beam is 90 degrees. Line resolution: Top view 0.0787mm (AWG40), side view 0.0787mm (AWG40);
Heat dissipation mode: oil immersion type; Penetration resolution: Top view 0.160mm, side view 0.160mm;
Radiation protection: 4mm thick lead plate; Spatial resolution: top view 1.0 mm, side view 1.0 mm;
Scattering angle: 80 degrees; Penetration force:8-10mm steel plate
Control mode: RS232 serial communication code control; Tube voltage: 80 kV
Collimator: Ultra-narrow slit out beam; Tube current: 0.4-1.2 mA (adjustable);
Detection system of x ray baggage scanner: The radiation angle of the beam is 80 degrees.

Structural design: modular, compact structure;
the dose of a single examination was less than 2.3 mSv/h.
Color painting: grey, white and blue; The dose rate of leakage radiation is less than 0.1 mSv/h.
Detection crystal: GSI; Power loss: 0.7KW (maximum);
Photoelectric conversion: CMOS; Operating voltage: 220VAC (+10%) 50+3Hz;condensation);
Pixel Arrangement: L-shaped Line Array; Energy-saving and environmental protection design; Lead curtain coated with a protective film to avoid lead pollution to the human body and prolong the service life of equipment;
Communication interface: RJ45 communication mode; Diagnostic function: automatic judgment in case of failure, prompt information in time, easy to maintain;
Image processing of x ray baggage scanner: Image retrieval: The device may be able to perform image retrieval according to the combination of image scanning time, operator ID, image preservation mode, and other conditions


Security X-ray Baggage Scanner Working Principle:


X-ray Baggage Scanner completes the examination by means of that belt making the baggage into the X-ray inspection lanes. Luggage into the X-ray checkpoint to stop the package detection sensor, the detect signal was sent to the system control part to generate X-ray trigger signal,. After a bunch of X-ray fan-shaped collimator beams passed through the items on the belt, X-rays were absorbed by seized items, finally, Bombarding dual-energy semiconductor detectors were installed in the channel. The X-ray into the signal through the detector, these weak signals are amplified and sent to the signal processing box for further processing.

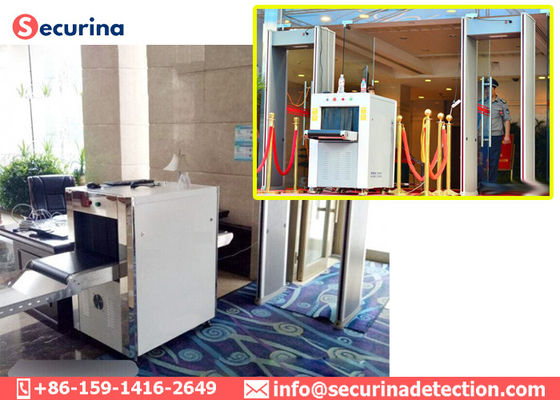

SA5030A Airport X-Ray Scanner Machine Pictures:

80KV X Ray Baggage Machine 0.22m/S Conveyor Belt For Security Inspection 1
