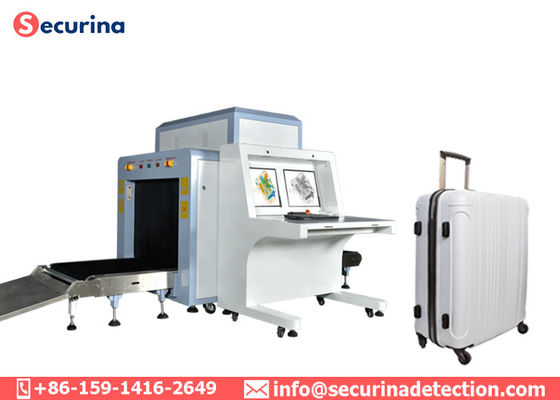

Full Digital Security Baggage X Ray Machine , Baggage Screening System 800mm Tunnel Length
|Place of Origin||Guangdong, China|
|Minimum Order Quantity||1 set|
|Price||$4999 - $29999/set|
|Packaging Details||Carton or wooden case|
|Delivery Time||5-10 working days after payment confirmation|
|Payment Terms||L/C, T/T, Western Union, MoneyGram|
|Supply Ability||5000 sets/month|
|Item Name||X Ray Baggage Scanner||Tunnel Size||800mm×650mm|
|Conveyor Speed||0.22m/s||Conveyor Height||338.5mm|
|Conveyor Max Load||200kg||OEM/ ODM||Accepted|
airport x ray machines,
cargo security scanning machine
Full Digital Security X Ray Baggage Scanner with 800mm Tunnel Length
X Ray Baggage Scanner working principle:
X - ray security inspection equipment has the baggage handling, X ray source and control part,
signal acquisition and processing and the transmission part and the image processing part and electric control part.
X - ray security inspection equipment will send checked baggage into the crawler channel to complete the
transfer with the help of the conveyor belt. Goods into the channel, detection device and
relevant information will be sent to the control unit, the X - ray source emitting X rays by the control unit triggers.
X ray through the collimator form very narrow fan beam, through the conveyor belt into the luggage on the detector,
the X - ray detector transfers received Xray into the electrical signal.The weak current signal is amplified to quantify ,
Transmitted through the universal serial bus to the industrial control computer for further processing,
and afteroperation imaging processing complex to obtain high quality images.
X Ray Baggage Scanner Features:
1. First dull-digital security detector in China, with clear iamge and strong anti-interference function
2. Embedded Windowx XP operating system, more efficient and stable,
with multi-core ARM CPU, low power consumption, energy conservation,
and environmental protection function
3. Each machine is tested by strict high and low temperaturetest before leaving the factory,
can run for more than 1000 hours without failure.
X Ray Baggage Scanner Operating Environment:
Operating temperature: 0℃-40℃
Operating Humidity: 10%-95% (non-condensing)
Storage Temperature: -20℃to 60℃
Storage Humidity: 5%-95% (non-condensing)
Operation Power: 220VAC (±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.0KW (max), 0.7KW (working)
X Ray Baggage Scanner Technical Parameter:
2848.5mm x1095mm x1535.5 mm
|X Ray Scanner N.Weight||
2GB 1600MHz DDR3 Innodisk
XP system system
|X ray Dose per inspection||
<0.5 μSv/h (at a distance of 5cm From external housing)
30 mm steel guarantee, 32mm steel typical
38 AWG guarantee, 40 AWG typical
|Spatial resolution Level||
1.0KW (max), 0.7KW(working)
|Generate angle||80 degree upward|
|Generate direct||From bottom to top|
|Cooling / Duty Cycle||Oil Cooling /100%|
Industrial Metal Detector Conveyor Product Pictures:
