100VAC 600kgs X Ray Inspection Equipment 0.22m/s For Baggage
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xScanning Image | 4 Colors Scanning Image | Channel Size | 65(W)*50(H)cm-6550 |
---|---|---|---|
Display | 17inch Or 19inch Monitor | Conveyor Speed | 0.22m/s(adjustable) |
Package Volume | 5.4 CBM | Gross Weight | 600kgs |
High Light | 100VAC X Ray Inspection Equipment,600kgs X Ray Inspection Equipment,0.22m/s X Ray Cargo Scanner |

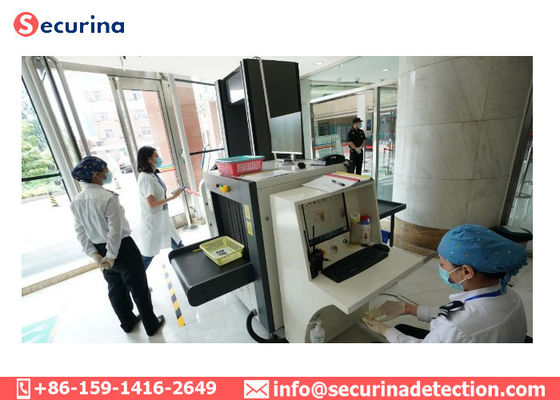

Gross Weight 600kgs Hospital Safety X-Ray Inspection Equipment For Baggage And Goods
There are a large number of people staying in the hospital. Some people are easily disturbed. They are seriously ill, terminally ill, and endure pain. They have psychological barriers, and it is easy to vent their bad emotions to the medical staff. As a result, physical conflicts and even equipment injuries occur. In order to create a safe environment in the hospital, it is necessary to train professional security personnel and be equipped with security equipment. Promulgated professional standards for security personnel in medical institutions, requiring them to understand psychology and analytical skills, understand the rights of patients and comply with medical confidentiality requirements, and be able to prevent drug theft and conflicts with patients and their relatives.
1. Install fences around the territory of medical institutions
2. Install electronic locking systems on entrance doors and doors
3. Checkpoint equipment at the entrance of medical institutions
4. Install special revolving doors and arched metal detectors at the entrance of medical facilities
5. Install an anti-theft alarm system
6. Organizations that install video surveillance cameras and other access control in the external areas and internal locations of medical facilities.
SA6550 X Ray Inspection Equipment Specification:
Tunnel Size | 650(W)*500(H)mm |
Conveyor Speed | 0.22m/s |
Conveyor Max Load | 170kg |
Dose per Inspection | <2.9μ Gy/h |
Resolution | <0.101mm Metal Wire |
Spatial resolution | Level: Dia1.0mm, Vertical: Dia1.3mm |
Penetrate resolution | Dia 0.511mm |
Penetration | 30-32mm steel |
Film Safety | Guarantee ISO1600 Film |
X-ray Leakage | <0.5 μ Gy/h (at a distance of 5cm From external housing) |
Image System : | |
Technical Principle | Dual-energy X-ray Imaging; L Shaped Array |
X-ray Sensor | L-Shaped Photodiode Array (multi-energetic) |
Monitor | High Resolution Color, LCD Accord, 17inch |
Image Display | High resolution of 1024 * 1280 pixel; Image Grey Level: 65536 |
Image Enhancement | 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc. |
Image Recall: | All preceding images recallable, retrieval. |
Explosives & Narcotics Detection | Explosives & narcotics alarm and highlight according to atomic number signature |
High Density Region Alarm | Impenetrable region alarm and highlight, for possible concealing of threats and contrabands |
Image Archive | Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats |
Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training,etc |
Network Applications | Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) . |
Images process | 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536 |
Operating Environment: | |
Operation temperature/Humidity | 0ºC-40ºC/10%-95%(non-condensing) |
Storage Temperature/Humidity | -20ºCto 60ºC/ 5%-95%(non-condensing) |
Operation Power | 220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC) |
Power Consumption | 1.0KW (max), 0.3KW(working) |
Noise | <58db |
Scanner Dimensions (L×W×H) | 2200mm x918mm x1442mm |
Gross Weight | 700kgs |
Packing Volume | 5.5 CBM |
X-ray Generator: | |
Anode Voltage | 140kv |
Anode Power | 0.35 MA |
Generate angle | 80 degree upward |
Brand | Chinese Brand |
Generate direct | from bottom to top |
Cooling / Duty Cycle | Oil Cooling /100 |
