L Photodiode Array 32mm Steel X Ray Machine 3.5CBM For Baggage

Place of Origin Shenzhen ,China
Brand Name Securina
Certification FCC/CE
Model Number SA6040
Minimum Order Quantity 1 Piece
Price $4999 - $29999/set
Packaging Details wooden box, one carton: 218*105*160cm, gross weight: 600kgs
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 800 Set/Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tunnel Size 600 Mm (W) X 400 Mm (H) Funtion Security Baggage Inspection
Conveyor Speed 0.22m/s Coneyor Load 150kgs
Penetration 30-32mm Steel Scanning Image 4 Colors Image Display
High Light

32mm Steel X Ray Machine

,

L Photodiode Array X Ray Machine

,

3.5CBM Baggage X Ray Scanner

Leave a Message
Product Description

32mm Steel Penetration Package X Ray Machine At Airport For Baggage Inspection SA6040



L Photodiode Array 32mm Steel X Ray Machine 3.5CBM For Baggage 0





SA6040 x ray baggage inspection equipment introduction:



Securina SA6040 package x ray inspection machine is a modern and effective tool for ensuring safety in transport, strategic facilities and checkpoints of institutions.



Securina SA6040 is the optimal setting for screening hand baggage and oversized baggage at airports and at checkpoints for screening personnel. The small size of the unit allows it to be placed in security inspection areas where space is limited. The equipment has a basic set of functions that allow you to identify a latent threat and prevent the entry of prohibited and dangerous items.



Securina SA6040 is a reliable and perfect installation for checking objects with a maximum size of 60x40cm (width x height). The system is equipped with the functions of image analysis in real time, has an improved material recognition system, the function of automatically highlighting suspicious areas. The system features an ergonomic operating concept with programmable priority keys.It can be used as part of an automated control system for hand luggage and baggage.



SA6040 x ray baggage inspection equipment features:

Inspection Tunnel Size: 610 (w) x 410 (h) mm
Conveyor speed: 0.2m/s
Penetration (on steel): not less than 30 mm
Resolution (on wire): no more than 0.09 mm
Safety for photographic films: film speed up to ISO1600 (33DIN)
Maximum lifting capacity: 150 Kg
Work cycle: round the clock
Less noise: less than 70 dB (A)
Operating temperature: 0 deg. C - +40 deg. FROM
Supply power: 220 +/- 22 V, 50 Hz
Power consumption: no more than 0.8 kVA



SA6040 x ray baggage inspection equipment specifications:



Power supply AC 220 V(+10%~-15%) 50±3 (Hz)
X-ray Sensor  L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Operation temperature/Humidity   0ºC-45ºC / 5%-95%(non-condensing)
Penetration
30-32mm steel
Image Display  High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
X-ray Leakage

<0.5 μ Gy/h (at a distance of 5cm From external housing)

Conveyor Speed  0.22m/s
Image Archive

converting to JPG, BMP and other general formats

Packing Volume

3.5CBM





Securina professional in manufacturing:



1. Airport security screening equpiments, like x-ray baggage scanner, security metal detectors, handheld metal detector, under vehicle surveillance system, search camera, search mirror, liquid scanner, explosive detector, bomb blanket, bomb container, explosion suppression device, etc.

2. Industrial metal detector, conveyor metal detetor, food metal detector, nail detector, needle detector for quality control in factory.

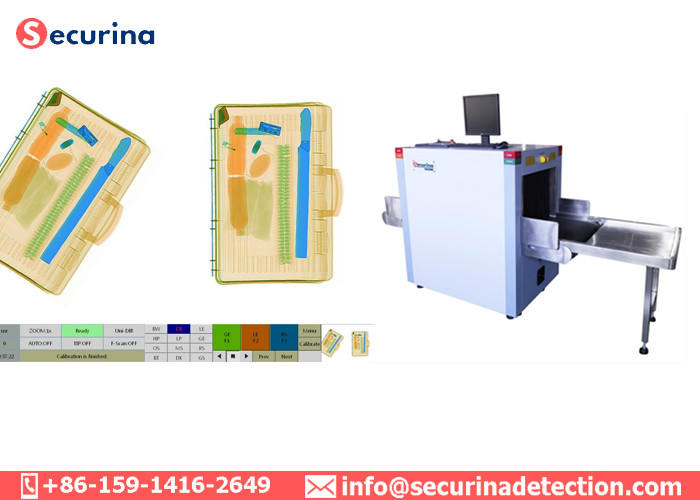

SA6040 x ray baggage inspection equipment image:

L Photodiode Array 32mm Steel X Ray Machine 3.5CBM For Baggage 1
