50x30cm Tunnel Small Bag X Ray Machine Airport With Linux Operating System

  • 50x30cm Tunnel Small Bag X Ray Machine Airport With Linux Operating System
  • 50x30cm Tunnel Small Bag X Ray Machine Airport With Linux Operating System
  • 50x30cm Tunnel Small Bag X Ray Machine Airport With Linux Operating System
Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number SA5030A
Minimum Order Quantity 1 set
Price $3999 - $9999/set
Packaging Details Carton or wooden case
Delivery Time 5-10 working days after payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 5000 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Description Small Bag X Ray Machine Airport Tunnel Size 50×30cm
Conveyor Speed 0.22m/s Penetration 8-10mm Steel
X-ray Generator 80KV Monitor 17inch LCD Screen
High Light

50x30cm Tunnel X Ray Machine

,

0.22m/s X Ray Machine

,

Linux Operating System Baggage Scanner
Leave a Message
Product Description

Tunnel Size 50x30cm Small Bag X Ray Machine Airport With Linux Operation System

50x30cm Tunnel Small Bag X Ray Machine Airport With Linux Operating System 0



Securina SA5030A is an X-ray detection imaging scanning security inspection equipment. It has more than 5,000 cases in the global security market. It is a cost-effective X-ray inspection system.



Securina SA5030A is a modular desktop system, which can be flexibly extended and suitable for different applications.

With the most advanced X-ray detectors and computer technology, the system meets the advanced solutions of aviation safety inspection

X-RAY Features:



1.Securina SA5030A allows operators to customize functional configuration and image management functions.



2.Securina SA5030A is a small area X-ray security inspection machine. It is suitable for airports, metros, museums, embassies, customs stations, port terminals, tourist attractions, sports and cultural sites, conference centers, exhibition centers, large-scale activities, scientific research institutions, postal securities, logistics express, frontier defense army, financial power, Hotel schools, public inspection law, factory enterprises, and so on. Important departments in other public places. Mainly used to detect small goods, parcels, mail, small bags, suitcases, bags, backpacks and other items hidden in prohibited items such as guns, knives, detonators, fireworks and firecrackers.



3.Securina SA5030A adopts advanced X-ray low-dose penetration scanning technology. Its penetration force can reach 8-10 mm steel plate. It can pack small pieces of goods through luggage bags smaller than 300(H)*500(W) mm.



SA5030A Small Bag X Ray Machine Specifications:



X Ray source: Channel size: 500 (width) x 300 (high) mm;
Penetration force: 43mm steel plate; Conveyor belt speed: 0.22m/s;
Tube voltage: 80 KV (adjustable); Maximum load of conveyor belt: 100Kg;
Tube current: 0.4-1.2 mA (adjustable); Film safety: ISO1600 film safety;
The divergence angle of the beam is 90 degrees. Line resolution: Top view 0.0787mm (AWG40), side view 0.0787mm (AWG40);
Heat dissipation mode: oil immersion type; Penetration resolution: Top view 0.160mm, side view 0.160mm;
Radiation protection: 4mm thick lead plate; Spatial resolution: top view 1.0 mm, side view 1.0 mm;
Scattering angle: 80 degrees; Penetration force:8-10mm steel plate
Control mode: RS232 serial communication code control; Tube voltage: 80 kV
Collimator: Ultra-narrow slit out beam; Tube current: 0.4-1.2 mA (adjustable);
Detection system The radiation angle of the beam is 80 degrees.

Structural design: modular, compact structure;		 DThe dose of single examination was less than 2.3 mSv/h.
Color painting: grey, white and blue; The dose rate of leakage radiation is less than 0.1 mSv/h.
Detection crystal: GSI; Power loss: 0.7KW (maximum);
Photoelectric conversion: CMOS; Operating voltage: 220VAC (+10%) 50+3Hz;condensation);
Pixel Arrangement: L-shaped Line Array; Energy-saving and environmental protection design; Lead curtain coated with protective film to avoid lead pollution to human body and prolong the service life of equipment;
Communication interface: RJ45 communication mode; Diagnostic function: automatic judgment in case of failure, prompt information in time, easy to maintain;
Image processing Image retrieval: The device may be able to perform image retrieval according to the combination of image scanning time, operator ID, image preservation mode and other conditions



FAQ



How many days we can get the machine after payment?

Normally, the equipment in stock only needs 3-5 days. If there is no inventory, it will take 10-15 days to produce. We will provide sea transportation, air transportation and other modes of transportation according to your needs



Securina professional in manufacturing:



1. Airport security screening equpiments, like x-ray baggage scanner, walk through metal detectors, handheld metal detector, under vehicle surveillance system, search camera, search mirror, liquid scanner, explosive detector, bomb blanket, bomb container, explosion suppression device, etc.

2. Industrial metal detector, conveyor metal detetor, food metal detector, nail detector, needle detector for quality control in factory.

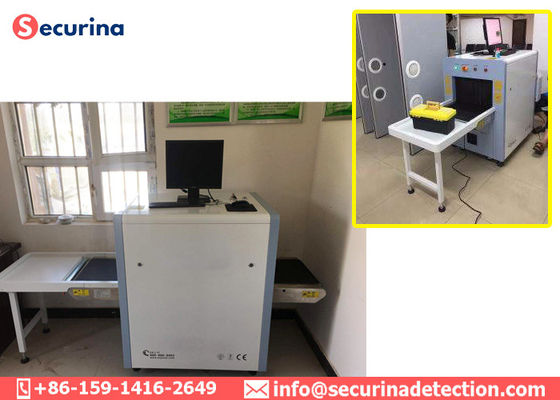

5030A X Ray Scanner Machine Pictures:

50x30cm Tunnel Small Bag X Ray Machine Airport With Linux Operating System 1
