5030A Single Energy X Ray Scanner Machine Inspection Of Hand Luggage And Parcels

  • 5030A Single Energy X Ray Scanner Machine Inspection Of Hand Luggage And Parcels
  • 5030A Single Energy X Ray Scanner Machine Inspection Of Hand Luggage And Parcels
  • 5030A Single Energy X Ray Scanner Machine Inspection Of Hand Luggage And Parcels
Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number SA5030A
Minimum Order Quantity 1 set
Price $3999 - $9999/set
Packaging Details Carton or wooden case
Delivery Time 5-10 working days after payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 5000 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Description 5030A Single Energy X Ray Scanner Machine Tunnel Size 500mm×300mm
Conveyor Speed 0.22m/s Penetration 8-10mm Steel
X-ray Generator 80KV Using For Hotel, Church, Bank
High Light

0.22m/s X Ray Scanner Machine

,

80KV X Ray Scanner Machine

,

10mm Steel X Ray Machine
Leave a Message
Product Description

5030A Single Energy X Ray Scanner Machine Inspection Of Hand Luggage And Parcels

5030A Single Energy X Ray Scanner Machine Inspection Of Hand Luggage And Parcels 0



A lightweight and compact x ray scanner machine that offers the same performance and hazard detection capabilities as the flagship X-ray inspection systems. Economic choice with single-energy scanning technology, high definition fake color scanning image which can easy and clear to check all goods in parcels with shapes. Hazardous Object Injection (TIP) allows you to monitor the quality of your operators. Has an intuitive interface and a comfortable keyboard with a touchpad.



SA5030A is a high quality X-ray Scanner Machine. Allows you to ensure control in areas of high traffic. Allows you to quickly detect prohibited items. Uses a reliable high-quality X-ray generator. An innovative algorithm provides a clear image that allows operators to identify items.


Applications:
Correctional institutions
Post offices
Schools
Stadiums, venues for public events
Police stations



5030A X Ray Scanner Machine Specifications:



 Dimension (L×W×H)

 1660mm x746mm x1165 mm
 X Ray Scanner N.Weight

 350Kg

 G.Weight

 400KG
 Control Board

 IMX6_mainboard-V030

 RAM

 1 G

 CPU

 Cortex A9

 Storage space

 500GB

 Computer system

 LINUX system



5030A X Ray Scanner Machine other Specifications:



X ray Dose per inspection: <0.1.25μSv

Wire Resolution: 38 AWG typical

Spatial resolution Level: dia1.3mm,Vertical: dia1.6mm

Penetration: 4-6mm steel

Penetration Resolution: Guarantee 32AWG

Film Safety: Guarantee ASA/ISO1600 Film

X-ray Leakage: <2.0 μSv/h (at a distance of 5cm From external housing)

Cooling / Duty Cycle: Oil Cooling /100%

Detect PCB board: UK brand Sensortech

Extension Rollers: customize size length

UPS: 15mins, 30mins, 60mins etc, optional



5030A X Ray Scanner Machine Generator:



Anode Voltage: 80kv

Anode power: 0.35mA

Generate angle: 80 degree upward

Brand: Made in China

Generate direct: from bottom to top



FAQ



How many days we can get the machine after payment?

Normally, the equipment in stock only needs 3-5 days. If there is no inventory, it will take 10-15 days to produce. We will provide sea transportation, air transportation and other modes of transportation according to your needs



Securina professional in manufacturing:



1. Airport security screening equpiments, like x-ray baggage scanner, walk through metal detectors, handheld metal detector, under vehicle surveillance system, search camera, search mirror, liquid scanner, explosive detector, bomb blanket, bomb container, explosion suppression device, etc.

2. Industrial metal detector, conveyor metal detetor, food metal detector, nail detector, needle detector for quality control in factory.

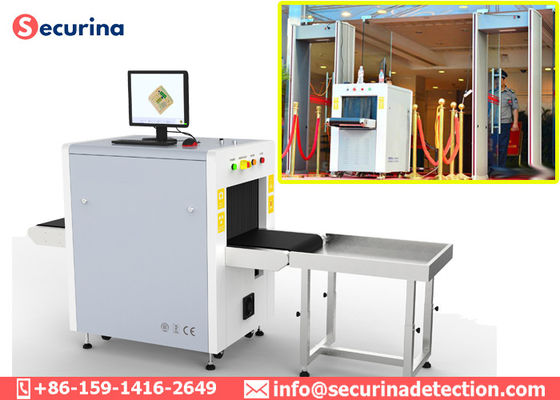

5030A X Ray Scanner Machine Pictures:



5030A Single Energy X Ray Scanner Machine Inspection Of Hand Luggage And Parcels 1
