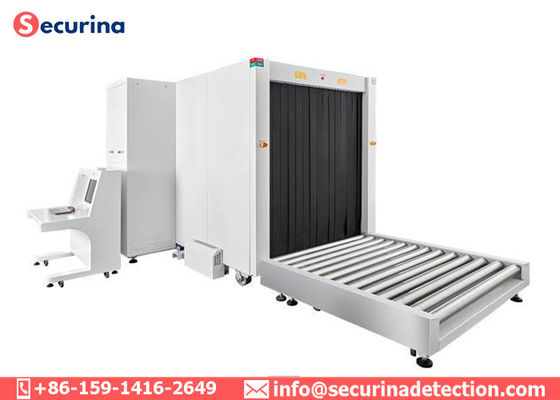

160kV X Ray Television Inspection System For Palletized Cargo Screening
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Securina |
| Certification | FCC-SDoC, CE |
| Model Number | SA150180 |
| Minimum Order Quantity | 1 set |
| Price | $4999 - $29999/set |
| Packaging Details | Carton or wooden case |
| Delivery Time | 5-10 working days after payment confirmation |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | X-Ray Television Inspection System | Tunnel Size | 1500mm×1800mm |
|---|---|---|---|
| Scanning Image | 4 Color Image Display | Monitor | LCD Display |
| Conveyor Max Load | 2000kg | X-ray Generator | 160KV In Standard, 200KV, 300KV In Option |
| High Light | 160kV X Ray Television Inspection System,0.5m/s X Ray Television Inspection System,2KW Palletized Cargo Scanner |
||
Product Description
160kV X-Ray Television Inspection System For Palletized Cargo Screening
Securina SA150180 is a high cost-effective customized X-ray detection imaging scanning safety inspection equipment.With the most advanced X-ray detector and computer technology, the system conforms to the advanced solution of aviation safety inspection.
Securina SA150180 allows operators to customize functional usage configurations and image management functions.
X-RAY Features:
1.Securina SA150180 is an important department for airports, customs stations, port terminals, logistics express delivery, border troops, factories and enterprises, and other public places. It is mainly used to detect prohibited items hidden in large cargo, parcels and other items, such as explosives, drugs, weapons of mass destruction and guns, knives, detonators, fireworks and other threats.
2.Securina SA150180 adopts advanced X-ray low-dose penetration scanning technology. Its penetration force can reach 60 mm steel plate. It can pass through 400 kg cargo with a box size less than 1500 (H)*1800 (W) mm.
Features of the SA150180 introscope:
- Low conveyor for heavy loads.
- Display of images of objects being inspected in 4 colors, depending on the atomic number. The 4-color display makes it easier for the operator to identify the materials of the inspected object and speeds up the inspection procedure itself.
- A system of continuous real-time diagnostics that allows users to monitor the condition of the equipment and prevent premature failure of it. This increases the service life of the equipment.
- A wide range of functions in the basic configuration.
- Russified keyboard and software.
SA150180 x ray television installation (introscopes) specifications:
| Tunnel size(mm) | 1500(L)*1800(W) |
| Conveyor Speed(m/s) | 0.5 |
| Conveyor height(mm) | 350 |
| Conveyor Max Load(kgs) | 2000 |
| X ray dose per each inspection | 1.5 μGy |
| X ray leakage | <0.25 μGy / h |
| Penetration | 36-43mm steel |
| Wire Resolution | dia 0.0787mm copper wire (AWG40) |
| Penetration Resolution | dia 0.16mm copper wire (AWG34) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm |
| Spatial resolution: | dia1.0mm,Vertical: dia1.0mm |
| Power Consumption | max. 2KW |
| Noise | < 58 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
| X-ray Generator (single) | |
| Anode Voltage | 160-200 KV |
| Anode power | 0.4-1.2mA (adjustable) |
| Generate direct | 80 degree downward |
| Cooling / Duty Cycle | from top to bottom |
| Brand | Spellman |
| Image System | |
| X-ray Sensor | L-Shaped Photodiode Array (multi-energetic) , 12bit Deep |
| Image Display | High resolution of 1024 * 1280 pixel; Image Grey Level: 4096 |
| Image Enhancement | 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc. |
| Image Recall | All preceding images recallable, retrieval |
| Explosives & Narcotics Detection | Explosives & narcotics alarm and highlight according to atomic number signature |
| High Density Region Alarm | Impenetrable region alarm and highlight, for possible concealing of threats and contrabands |
| Threat Image Projection | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image Archive | Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats |
| Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc. |
| Network Applications | Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) . |
| Images process | 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags |
| Operating Environment | |
| Operation temperature/Humidity | 0ºC-45ºC / 5%-95%(non-condensing) |
| Storage Temperature/Humidity | -40ºCto 70ºC / 5%-95%(non-condensing) |
| Operation Power | 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC) |
| UPS | 15mins, 30mins, 60mins etc, optional |
