220V Securina Detection X Ray Television Systems For Security Checking

Place of Origin Shenzhen ,China
Brand Name Securina
Certification FCC/CE
Model Number SA6040
Minimum Order Quantity 1 Piece
Price $4999 - $29999/set
Packaging Details wooden box, one carton: 218*105*160cm, gross weight: 600kgs
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 800 Set/Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tunnel Size 60(W)*40(H)cm Description X Ray Television Systems
Function Detection Of Attempts To Carry Prohibited And Undeclared Items To The Facility X-ray Generator Voltage 140KV
Penetration 30-32mm Steel Power Supply 220V 50Hz/60Hz
High Light

1.0KW X Ray Television Systems

,

140KV X Ray Television Systems

,

32mm Steel X Ray Scanner

Leave a Message
Product Description

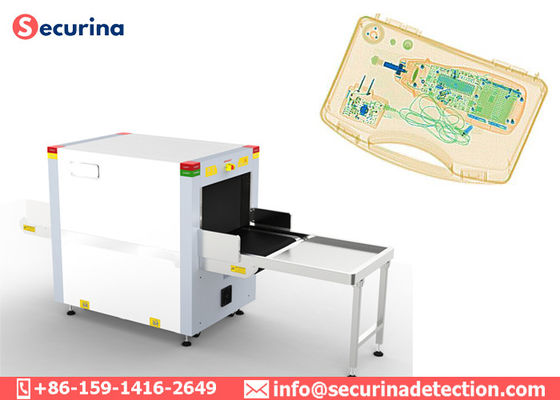

220V Power Supply Securina Detection X Ray Television Systems For Security Checking



Introduction of x ray television systems :



X-ray television installations (introscopes) are designed for non-contact inspection of baggage and carry-on baggage, detection of attempts to carry prohibited and undeclared items to the facility, as well as protection against theft of inventory items. X-ray television equipment is one of the most demanded technical means of inspection of baggage and hand luggage, mail, containers and vehicles.



This equipment is used:

at transport infrastructure facilities (railway stations, airports, sea and river terminals, bus stations, metro);
during cultural, sports and other public events;
at customs and checkpoints;
at cargo terminals and logistics centers ;
at large industrial enterprises ;
at strategic and critical sites;
at the entrance groups of office centers .



We offer a wide range of models and functionality of SECURINA Detection inspection equipment meets any customer needs and the highest detection standards.



SA6040 x ray television systems specifications:



Tunnel Size 600(W)*400(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 170kg
Dose per Inspection <2.9μ Gy/h
Resolution <0.101mm Metal Wire
Spatial resolution Level: Dia1.0mm, Vertical: Dia1.3mm
Penetrate resolution Dia 0.511mm
Penetration 30-32mm steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)
Image System :
Technical Principle Dual-energy X-ray Imaging; L Shaped Array
X-ray Sensor L-Shaped Photodiode Array (multi-energetic)
Monitor High Resolution Color, LCD Accord, 17inch
Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement 1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall: All preceding images recallable, retrieval.
Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of
threats and contrabands
Image Archive Up to 100,000 images stored automatically, enable transferring to USB disk, and
converting to JPG, BMP and other general formats
Miscellaneous Functions Time/date display, counters, user management, system-on/X-ray-on
timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training,etc
Network Applications Multiple remote applications available based on Ethernet LAN and
windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536
Operating Environment:
Operation temperature/Humidity 0ºC-40ºC/10%-95%(non-condensing)
Storage Temperature/Humidity -20ºCto 60ºC/ 5%-95%(non-condensing)
Operation Power 220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption 1.0KW (max), 0.7KW(working)
Noise <58db
Scanner Dimensions (L×W×H) 2007.5mm x868mm x1314 mm
Gross Weight 600kgs
Packing Volume 3.5 CBM
X-ray Generator:
Anode Voltage 140kv
Anode Power 0.35 MA
Generate angle 80 degree upward
Brand Chinese Brand
Generate direct from bottom to top
Cooling / Duty Cycle Oil Cooling /100




FAQ



How many days we can get the machine after payment?

Normally, the equipment in stock only needs 3-5 days. If there is no inventory, it will take 10-15 days to produce. We will provide sea transportation, air transportation and other modes of transportation according to your needs



Securina professional in manufacturing:



1. Airport security screening equpiments, like x-ray baggage scanner, walk through metal detectors, handheld metal detector, under vehicle surveillance system, search camera, search mirror, liquid scanner, explosive detector, bomb blanket, bomb container, explosion suppression device, etc.

2. Industrial metal detector, conveyor metal detetor, food metal detector, nail detector, needle detector for quality control in factory.
