Tunnel Size 60x40cm Airport Baggage Scanner Machine With Color Scanning Image

Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number SA6040
Minimum Order Quantity 1 set
Price $4999 - $29999/set
Packaging Details Carton or wooden case
Delivery Time 5-10 working days after payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 5000 sets/month
Product Details
Item Name Airport Baggage Scanner Machine Tunnel Size 60×40cm
Color Scanning Image 4 Kinds Of Colors Conveyor Height 680.5mm
Conveyor Max Load 160kg Warranty 24month, Limited Parts
High Light

17" Airport Baggage Scanner Machine


0.3mA Airport Baggage Scanner Machine


140kv Baggage X Ray Scanner

Leave a Message
Product Description

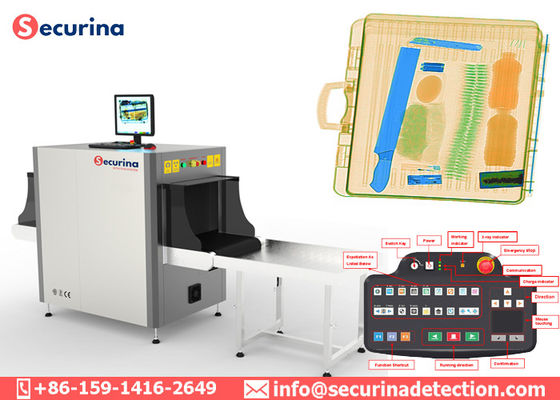

Tunnel Size 60x40cm Airport Baggage Scanner Machine With Color Scanning Image

Airport baggage scanner machine is a kind of radioactivity detector, which is mainly used to detect whether dangerous goods are hidden in luggage and parcels. It is mainly used in places with strict security inspections such as stations, public transportation places, courts and prisons.


SA6040 airport baggage scanner machine has 13 kinds of image processing functions:

1. 12bit depth display-high resolution 17 inch LCD
2. Color image display---according to the material material, 24-bit true color display
3. Edge enhancement---the object outline edge is clearer
4. Super image enhancement---image details are clearer
5. High penetration display---improve the contrast of bright areas in the image to make the easy penetration areas clearer.
6. Low-penetration display---improve the contrast of dark areas in the image to make difficult-to-penetrate areas clearer.
7. Magnifying glass-partial zoom function, real-time dynamic zoom
8. Brighten/Darken---Increase the brightness of the image/decrease the brightness of the darkened image
9. Image pull back/pull forward---display the first 30 images, and any image processing can be performed on the image 10. Image restoration---image display returns to its original state
11. Image storage---save any image in real time, and can perform any image processing, and save it continuously.
12. Multi-energy color---organic matter is displayed as orange, inorganic matter is displayed as blue, and the mixture is displayed as green
13. High-energy/low-energy two-energy switching display-auxiliary detection of drug and explosives. It is more auxiliary to detect some typical drug and explosives and other dangerous items.


Airport Baggage Scanner Operating Environment​:
Operating temperature: 0℃-40℃
Operating Humidity: 10%-95% (non-condensing)
Storage Temperature: -20℃to 60℃
Storage Humidity: 5%-95% (non-condensing)
Operation Power: 220VAC (±10%)  50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.0KW (max), 0.7KW (working)
Airport Baggage Scanner Technical Parameter:

 Dimension (L×W×H)

 2007mm x 844mm x1234 mm

 X Ray Scanner N.Weight




 Control Board

 AIMB 501G2


 G1610 2.6G

 Storage space

 2GB 1600MHz DDR3 Innodisk

 Computer system

 XP system system

Airport Baggage Scanner other Specifications:

Noise: <58db

Anode Voltage: 140kv

Anode power: 0.3mA

Generate angle: 80 degree upward

Generate direct: from bottom to top

Cooling / Duty Cycle: Oil Cooling /100%

Extension Rollers: customize size length

Support card reader operator access

CD DVR/RW unit: Optional

Console optional: 17 inch one or two monitor
