Television Introscope Airport Security X Ray Scanner For Explosive / Weapon Detection

Product Details:
Place of Origin: Guangdong, China
Brand Name: Securina
Certification: FCC-SDoC, CE
Model Number: SA100100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $4999 - $29999/set
Packaging Details: Carton or wooden case
Delivery Time: 5-10 working days after payment confirmation
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 sets/month
  • Detail Information
  • Product Description

Detail Information

Item Name: X-ray Television Introscope, Airport Security X Ray Scanner Tunnel Size: 1000mm×1000mm
Penetration: 32mm Steel Resolution: 38-40AWG
Conveyor Max Load: 200kg Scanning Image: 4 Color Image Display
High Light:

baggage x ray scanner

,

cargo security scanning machine

Product Description

Resolution 38-40AWG X-ray Television Introscope, Airport Security X Ray Scanner for Explosive and Weapon Detection

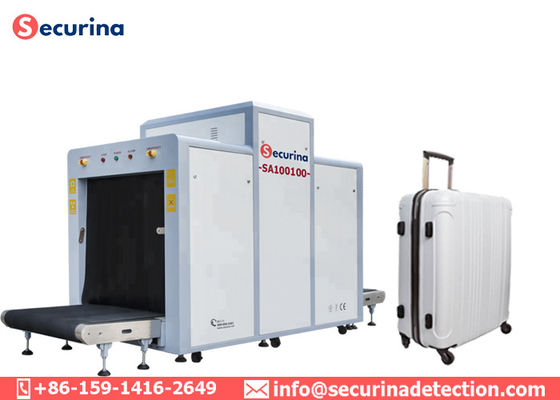

Television Introscope Airport Security X Ray Scanner For Explosive / Weapon Detection 0



SA100100 Multi-energy x-ray security inspection equipment which are designed for the security inspection of the big baggage, luggage and cargo etc.It's very popular model with scanning luggage size less than 1m(width)*1m(height).It's widely used in the airport, logistics, subways, bus station, hotels etc.

Airport Security X Ray Scanner Advantages:

1. Shiny clear images; High-resolution

2. Multi-energy penetration system

3. Multi-functions image processing system

4. EI-TIP(Threat Image Projection) function

5. Any selection of the image magnified area

6. Collection the high-speed parallel of detection data

7. Removable structure with independent console

8. Support JPG&BMP image transformation format to USB

9. Big tunnel design with multi-function operator interface

10. Portable separate structural design, equipped with independent operator's desk

Airport Security X Ray Scanner Technic Datas:

Physical Specifications
Unit weight (kgs) 1100
Unit size (mm) 3638.5(L)*1295(W)*1916.5(H) mm
after packed in wooden pallet -
Gross weight (kgs) 1300
Packing size #1: 290*150*220cm
  #2: 113*91*142cm

General Specifications
Tunnel size(mm) 1000(L)*1000(W)
Conveyor Speed(m/s) 0.22
Conveyor height(mm) 338.5
Conveyor Max Load(kgs) 200
X ray dose per each inspection 1.5 μGy
X ray leakage <0.25 μGy / h
Penetration 30- 32mm steel
Wire Resolution dia 0.0787mm copper wire (AWG40)
Penetration Resolution dia 0.16mm copper wire (AWG34) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Spatial resolution: dia1.0mm,Vertical: dia1.0mm
Power Consumption max. 1KW
Noise < 58 dB
Film Safety Guarantee ASA/ISO1600 Film

X-ray Generator (single)
Anode Voltage 160 KV
Anode power 0.4-1.2mA (adjustable)
Generate angle 80 degree upward
Generate direct from bottom to top
Cooling / Duty Cycle Oil Cooling /100%
Brand Made in China



About Securina:



Securina is professional manufacturer, factory, exportor, Chinese supplier for metal detectors and security scanner equipments.

The complete range of security inspection system are walk through metal detector, x-ray baggage scanner, handheld metal detector, UVSS, Under Vehicle Inspection Camera and Mirror, Food conveyor metal detector and tyre killer, road blocker, hydraulic bollards.etc

Securina system already supplied to South Africa, Zimbabwe, Nigeria, Cameroon, Sierra Leone, Liberia, Ghana, Malawi, Seychelles, Gambia, Kenya, Ethiopia, Eritrea, Somalia, Lesotho, Swaziland, Sudan, Uganda, Tanzania, Zambia, Namibia, Botswana, St. Helkina.etc African markets.

Also cooperated with customer from Russia, Ukraine, Belarus, Estonia, Latvia, Lithuania, Moldavia, Georgia, Armenia, Azerbaijan, Kazakhstan, Uzbekistan, Kyrgyzstan, Turkmenistan, Tajikistan.etc

Exporting to Albania, Andorra, Austria, Belarus, Belgium, Bosnia & Herzegovina, Bulgaria, Croatia, Cyprus, Czech Rep., Denmark, Estonia, Iceland, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, The Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia & Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland.etc



Airport Security X Ray Scanner Product Pictures:

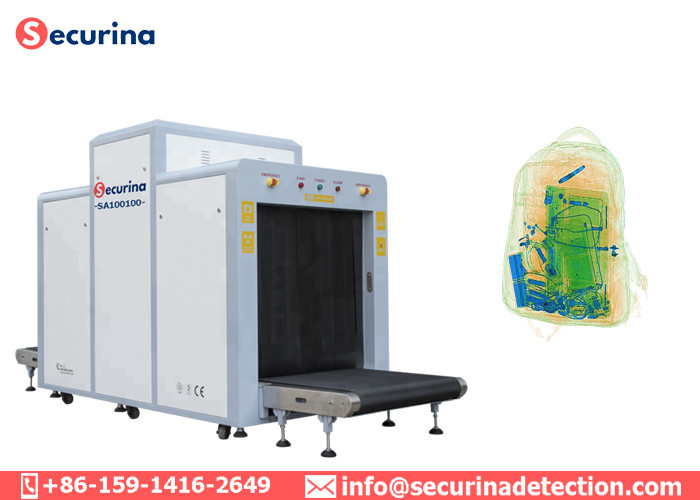

Television Introscope Airport Security X Ray Scanner For Explosive / Weapon Detection 1
