Securina Detection System Co., Limited

Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080

Product Details:
Place of Origin: Guangdong, China
Brand Name: Securina
Certification: FCC-SDoC, CE
Model Number: SA10080
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $4999 - $29999/set
Packaging Details: Carton or wooden case
Delivery Time: 5-10 working days after payment confirmation
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 sets/month
  • Detail Information
  • Product Description

Detail Information

Item Name: X Ray Luggage Screening Equipment Tunnel Size: 100*80cm
Conveyor Speed: 0.22m/s Conveyor Height: 338.5mm
Conveyor Max Load: 200kg X Ray Image: 4 Kinds Of Color Display
High Light:

baggage x ray scanner

,

cargo security scanning machine

Product Description

Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080



Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080 0





X Ray Cargo Scanner Introduction:

SA10080 heavy-duty conveyorized direct transmission X-ray inspection system is designed for screening large objects, hold baggage and cargo for concealed weapons, explosives and contraband.

Multi-energy color allows operators to quickly spot areas of concern in the most thickly packed parcels, bulk loads and baggage. The system's high-capacity conveyor sits less than a foot from the floor for easier, more ergonomic loading.

  • 1. Perfect for air cargo screening
  • 2. autoSensing assures 100% screening of all items,
    3. no matter how thin or low
  • 4. Ideal for inspecting oversized and out-of-gauge objects


X Ray Cargo Scanner Technical Parameter:



 Dimension (L×W×H)

 3138.5mm x1295mm x1716.5 mm

 G.Weight

 1070Kg

 Control Board

 AIMB 501G2

 CPU

 G1610 2.6G

 Storage space

 2GB 1600MHz DDR3 Innodisk

 Computer system

 XP system system

 X ray Dose per inspection

 <1.5μSv

 X-ray Leakage

 <0.5 μSv/h (at a distance of 5cm From external housing)

 Penetration

 30 mm steel guarantee, 32mm steel typical

 Wire Resolution

 38 AWG guarantee, 40 AWG typical

 Spatial resolution Level

 Dia1.3mm,Vertical: dia1.6mm

 Power Consumption

 1.0KW (max), 0.7KW(working)

 Noise   <58db
 Anode Voltage  140 - 160kv(adjustable)
 Anode power  0.2-1.2mA
 Generate angle  80 degree upward
 Generate direct  From bottom to top
 Cooling / Duty Cycle  Oil Cooling /100%



X Ray Cargo Scanner Operating Environment​:

Operating temperature: 5℃ - 40℃
Operating Humidity: 10% - 95% (non-condensing)
Storage Temperature: -20℃ to 60℃
Storage Humidity: 10% - 95% (non-condensing)
Operation Power: 220VAC (±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.0KW (max), 0.7KW (working)



About Securina:



Securina is professional manufacturer, factory exportor, Chinese supplier for metal detectors and security screening equipments.

The complete range of security inspection system are walk through metal detector, x-ray baggage scanner, handheld metal detector, UVSS, Food metal detector and tyre killer, road blocker, hydraulic bollards.etc

Securina system already supplied to South Africa, Zimbabwe, Nigeria, Cameroon, Sierra Leone, Liberia, Ghana, Malawi, Seychelles, Gambia, Kenya, Ethiopia, Eritrea, Somalia, Lesotho, Swaziland, Sudan, Uganda, Tanzania, Zambia, Namibia, Botswana, St. Helkina.etc African markets.

Also cooperated with customer from Russia, Ukraine, Belarus, Estonia, Latvia, Lithuania, Moldavia, Georgia, Armenia, Azerbaijan, Kazakhstan, Uzbekistan, Kyrgyzstan, Turkmenistan, Tajikistan.etc

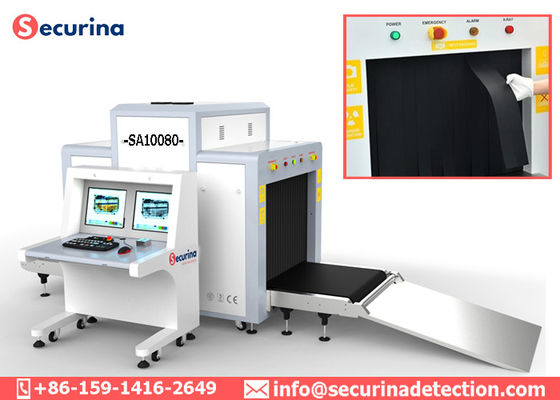

X Ray Cargo Scanner Product Pictures:

Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080 1
