200Kgs Conveyor Load X Ray Baggage Inspection System For Security Screening

Place of Origin Shenzhen ,China
Brand Name Securina
Certification FCC/CE
Model Number SA8065
Minimum Order Quantity 1 Piece
Price $4999 - $29999/set
Packaging Details wooden packing
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Scanner Dimensions (L×W×H) 2848.5mm X1095mm X1535.5 Mm Gross Weight 900kgs
Packing Volume 6.3 CBM Conveyor Speed Conveyor Speed 0.2m/S
Conveyor Max Load 200kgs Conveyor Height 670mm
Technical Principle Dual-energy X-ray Imaging; L Shaped Array
High Light

airport x ray machines


baggage x ray scanner

Leave a Message
Product Description

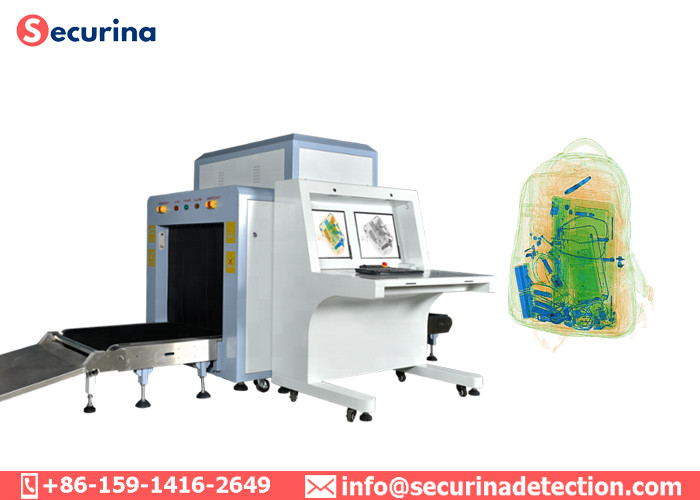

200Kgs Max Conveyor Load X-ray Baggage Inspection System, Cargo X Ray Scanner for Security Screening


200Kgs Conveyor Load X Ray Baggage Inspection System For Security Screening 0

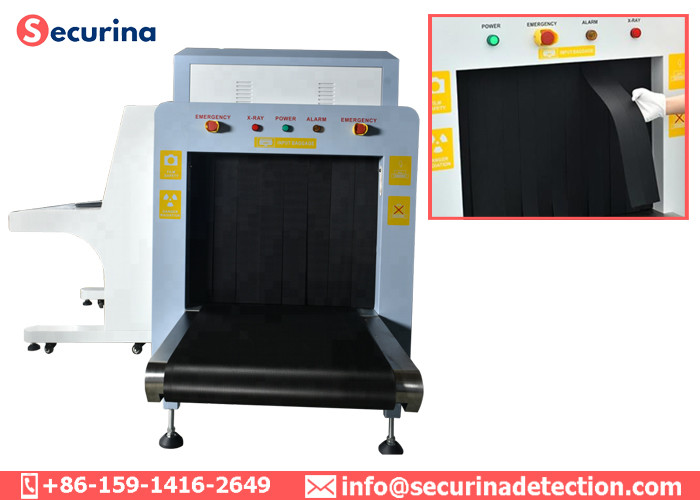

SA8065 Multi-Energy X-ray Security Inspection system has a big tunnel size design for baggage security screening.
It's the entry-level model for the big x-ray luggage scanners.Widely used in the airport, logistics, subways, bus station, hotels etc.


X-Ray Imaging is a premier security equipment supplier to governmental and business entities. We provide and service X-ray security systems, walk-through metal detectors, and hand-held metal detectors.

Parcel, Baggage and Small Cargo X-ray Inspection. Cost-effective checkpoint, baggage and small cargo X-ray inspection systems are especially designed to meet main requirements of airports, customs facilities, carriers, parcel services.


Cargo X ray Scanner Specifications:


Tunnel Size 800(W)*650(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 200kg
Dose per Inspection <2.9μ Gy/h
Resolution <0.101mm Metal Wire
Spatial resolution Level: Dia1.0mm, Vertical: Dia1.3mm
Penetrate resolution Dia 0.511mm
Penetration 30-32mm steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)
Image System :
Technical Principle Dual-energy X-ray Imaging; L Shaped Array
X-ray Sensor L-Shaped Photodiode Array (multi-energetic)
Monitor High Resolution Color, LCD Accord, 17inch
Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement 1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall: All preceding images recallable, retrieval.





Are you manufacturer?

Yes, we are a manufacturer specializing in safety inspection systems and Equipments in south China. Stable quality and first-class service are always our focus. We can also provide customized equipment according to customer needs


How many days we can get the machine after payment?

Under normal circumstances, equipment in stock only takes 3-5 days. If there is no stock, it takes 10-15 days to produce. We will provide shipping, air transportation and other transportation methods according to your needs
