38-40AWG Security Screening X Ray Equipment Baggage Inspection Introscopes SA6040

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: Securina
Certification: FCC/CE
Model Number: SA6040
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: $4999 - $29999/set
Packaging Details: wooden box, one carton: 218*105*160cm, gross weight: 600kgs
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 800 Set/Sets per Month
  • Detail Information
  • Product Description

Detail Information

Middle Size: 60x40cm Image System: Dual-energy Image System
X-ray Generator: 140KV X-ray Current: 0.3-1.0A
Penetration: 30-32mm Steel Resolution: 38-40AWG
High Light:

airport x ray machines

,

cargo security scanning machine

Product Description

Penetration 32mm Steel Security Screening X-ray Equipment, Baggage Inspection Introscopes SA6040



Baggage Inspection Introscopes Overview:

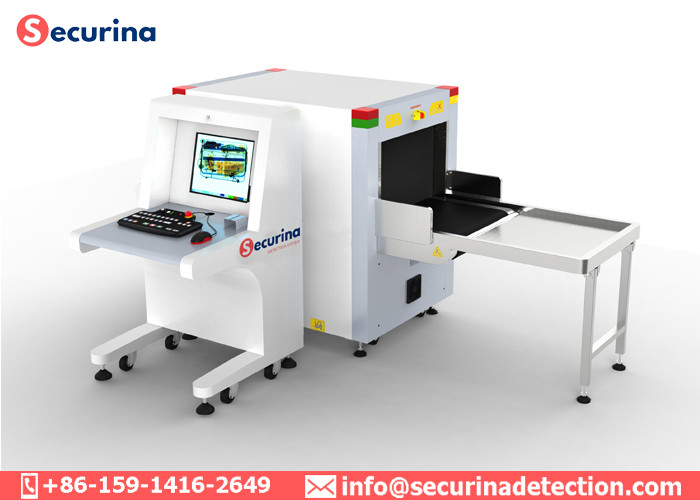

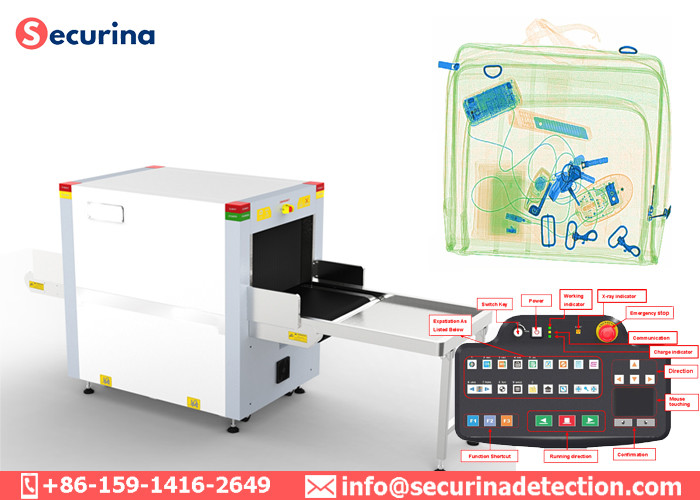

Securina SA6040 X-Ray Baggage Inspection Introscope features a tunnel opening of 60.0 x 40.0 cm (23.6” x 15.7”). SA6040 offers a compact design with increased dimensions to enable a wider range of placement and screening of more diverse objects. The single-source, multi-energy SA6040 X-ray inspection system is designed to screen small- to mid-sized items for weapons, explosives, drugs and other contraband. The right size for scanning strollers, briefcases, backpacks, purses and other hand-carried items. SA6040 has found placement at hotels, prisons, government sites, and transportation hubs.



Baggage Inspection Introscopes Specifications:



Tunnel Size 600(W)*400(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 170kg
Dose per Inspection <2.9μ Gy/h
Resolution <0.101mm Metal Wire
Spatial resolution Level: Dia1.0mm, Vertical: Dia1.3mm
Penetrate resolution Dia 0.511mm
Penetration 30-32mm steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)
Image System :
Technical Principle Dual-energy X-ray Imaging; L Shaped Array
X-ray Sensor L-Shaped Photodiode Array (multi-energetic)
Monitor High Resolution Color, LCD Accord, 17inch
Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement 1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall: All preceding images recallable, retrieval.
Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of
threats and contrabands
Image Archive Up to 100,000 images stored automatically, enable transferring to USB disk, and
converting to JPG, BMP and other general formats
Miscellaneous Functions Time/date display, counters, user management, system-on/X-ray-on
timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training,etc
Network Applications Multiple remote applications available based on Ethernet LAN and
windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536
Operating Environment:
Operation temperature/Humidity 0ºC-40ºC/10%-95%(non-condensing)
Storage Temperature/Humidity -20ºCto 60ºC/ 5%-95%(non-condensing)
Operation Power 220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption 1.0KW (max), 0.7KW(working)
Noise <58db
Scanner Dimensions (L×W×H) 2007.5mm x868mm x1314 mm
Gross Weight 600kgs
Packing Volume 3.5 CBM
X-ray Generator:
Anode Voltage 140kv
Anode Power 0.35 MA
Generate angle 80 degree upward
Brand Chinese Brand
Generate direct from bottom to top
Cooling / Duty Cycle Oil Cooling /100





Securina professional in manufacturing:



1. Airport security screening equpiments and anti-terrorism protection equipment, namely: arched and hand-held metal detectors , baggage inspection introscopes and X-ray television systems , inspection mirrors , explosive and narcotic analyzer.

2. Industrial metal detector, conveyor metal detetor, food metal detector, nail detector, needle detector for quality control in factory.



Securina Major markets:



Securina is a manufacturer / factory /supplier / Exporter of X-ray Television Installation(Introscopes) and metal detectors in China, exporting products to Mongolia, Singapore, Malaysia, Indonesia, Myanmar, Thailand, Laos, Cambodia, Vietnam, Brunei, Philippines, Iran, Iraq, Turkey, Syria, Jordan, Lebanon, Israel, Palestine, Saudi Arabia, Yemen, United Arab Emirates, Qatar, Kuwait, Bahrain, Greece, Cyprus, Egypt, India, Pakistan, Bangladesh, Afghanistan, Sri Lanka, Maldives, Nepal, Bhutan, Kazakhstan, Uzbekistan, Turkmenistan, Tajikistan, Kyrgyzstan, Russia, Ukraine, Belarus, Georgia, Azerbaijan, Armenia, Moldova, Poland, Lithuania, Estonia, Latvia, Czech Republic, Slovakia, Hungary, Slovenia, Croatia, Bosnia and Herzegovina, Montenegro, Serbia, Romania, Bulgaria, Macedonia, Albania.etc
