Multi Energy Color Scanning X Ray Security Baggage Scanner With Penetration 32mm Steel

Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number SA100100
Minimum Order Quantity 1 set
Price $4999 - $29999/set
Packaging Details Carton or wooden case
Delivery Time 5-10 working days after payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 5000 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Image System Multi-energy Tunnel Size 1000mm×1000mm
Conveyor Speed 0.22m/s Conveyor Max Load 200kg
Penetration 30-32mm Steel X Ray Generator 140-160KV
High Light

baggage x ray scanner

,

cargo security scanning machine

Leave a Message
Product Description

Multi-energy Color Scanning Security X Ray Cargo Scanner Equipments with Penetration 32mm Steel



Multi Energy Color Scanning X Ray Security Baggage Scanner With Penetration 32mm Steel 0





Security X Ray Cargo Scanner Introduction:


With the increased of global terrorism the requirement of screening solutions like X-ray scanners, X-ray body scanners and x-ray baggage scanners becomes crucial components in the effort to protect in aviation security, customs inspections and other critical infrastructure.



The security x ray machines find all types of dangerous metal, organic and inorganic substance. These Security x ray scanner throw low penetration of radiation to detect metallic and non-metallic objects hidden under clothing.



Our x-ray baggage scanner are specifically designed for Airport, Business Hubs, Civil institution etc. At times human Inspection will never provide 100% security screening so these x-ray baggage scanner will quickly detect any unwanted or dangerous substance and make sure only the safe baggage gets through. Offers many feature like high resolution images, quick deployment and highest level of accuracy.





Security X Ray Cargo Scanner Specifications:



Dimension (L×W×H) 3638.5mm x1295mm x1916.5 mm
Device Weight 900Kg
G.Weight 1370Kg
Control Board AIMB 501G2
CPU G1610 2.6G
Storage space 2GB 1600MHz DDR3 Innodisk
Computer system XP system system
X ray Dose per inspection <1.8μSv
X-ray Leakage <0.45 μSv/h (at a distance of 5cm From external housing)
Penetration 30 mm steel guarantee, 32mm steel typical
Wire Resolution 30 AWG guarantee, 32 AWG typical
Spatial resolution Level Dia1.3mm,Vertical: dia1.3mm
Power Consumption 1.3KW (max), 1KW(working)
Noise <58db
Anode Voltage 140 - 160kv (adjustable)
Anode power 0.2-1.2mA
Generate angle 80 degree upward
Generate direct From bottom to top
Cooling / Duty Cycle Oil Cooling /100%



Security X Ray Cargo Scanner Features:



1. First dull-digital security detector in China, with clear iamge and strong anti-interference function

2. Embedded Windowx XP operating system, more efficient and stable,

    with multi-core ARM CPU, low power consumption, energy conservation,

    and environmental protection function

3. Each machine is tested by strict high and low temperaturetest before leaving the factory,

    can run for more than 1000 hours without failure.


Security X Ray Cargo Scanner Operating Environment​:

Operating temperature: 5℃ - 40℃
Operating Humidity: 10% - 90% (non-condensing)
Storage Temperature: -40℃ to 60℃
Storage Humidity: 5% - 95% (non-condensing)
Operation Power: 220VAC (±10%)  50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.3KW (max), 1.0KW (working)



Securina professional in manufacturing:



1. Airport security screening equpiments, like x-ray baggage scanner, security metal detectors, handheld metal detector, under vehicle surveillance system, search camera, search mirror, liquid scanner, explosive detector, bomb blanket, bomb container, explosion suppression device, etc.

2. Industrial metal detector, conveyor metal detetor, food metal detector, nail detector, needle detector for quality control in factory.



Securina Major markets:



Securina is a manufacturer / factory /supplier / Exporter of security screening system and metal detectors in China, exporting products to Mongolia, Singapore, Malaysia, Indonesia, Myanmar, Thailand, Laos, Cambodia, Vietnam, Brunei, Philippines, Iran, Iraq, Turkey, Syria, Jordan, Lebanon, Israel, Palestine, Saudi Arabia, Yemen, United Arab Emirates, Qatar, Kuwait, Bahrain, Greece, Cyprus, Egypt, India, Pakistan, Bangladesh, Afghanistan, Sri Lanka, Maldives, Nepal, Bhutan, Kazakhstan, Uzbekistan, Turkmenistan, Tajikistan, Kyrgyzstan, Russia, Ukraine, Belarus, Georgia, Azerbaijan, Armenia, Moldova, Poland, Lithuania, Estonia, Latvia, Czech Republic, Slovakia, Hungary, Slovenia, Croatia, Bosnia and Herzegovina, Montenegro, Serbia, Romania, Bulgaria, Macedonia, Albania.etc




Security X Ray Cargo Scanner Product Pictures:

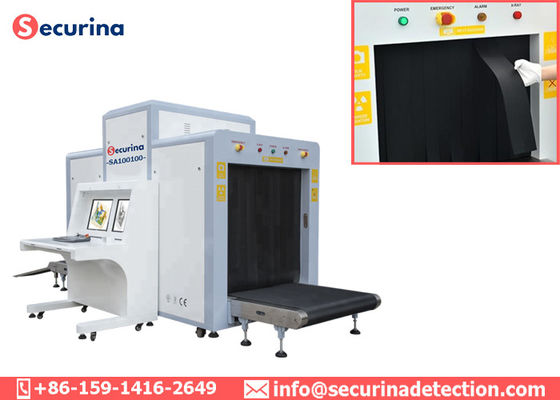

Multi Energy Color Scanning X Ray Security Baggage Scanner With Penetration 32mm Steel 1
