Carbon Steel Bomb Disposal Unit Blast Containment Vessel For Suspicious Threats Transferring

Bomb Blast Containment Vessel for Suspicious Threats Transferring

Bomb Containment Vessel Overview:

1. Explosion/Explosive/Bomb Containment Vessel (also named:

    Blast Management Systems, Explosive Blast Containment)

2. Blast Containment Receptacles(also named: explosion-proof tank, explosive storage vessels,

    blast containment bin, blast and fragment containment) is a kind of equipment that can prevent and

    reduce the damage to surrounding people and articles when explosives are exploded.

    According to the shape, it can be divided into two types: barrel type and ball type, also known as

    explosion-proof barrel and explosion-proof ball; according to the actual use, it can be equipped with tractor.

3. Explosion-proof tank (barrel type) is a kind of equipment used to hold explosive devices, and can weaken the

    explosive power to protect people and property. It consists of a triple structure and four anti-explosive materials.

    It is made of stainless steel and has an anti-explosion cover. The triple structure is: outer tank, top cover,

    filling layer (five years should be replaced new one); four anti-explosive materials are: special anti-explosion,

    anti-aging, fire-resistant anti-knocking glue, special fluffy layer. Refractory: PVC sheet, special steel sheet.

    The components are: one piece of explosion-proof cover, one piece of can, one piece of internal net.

4. Explosion-proof tank (spherical) is equipped with four casters under the sphere, which can be moved on a

    flat ground. It is especially suitable for temporary storage of explosives in public places such as airports,

    stations and various venues where people gather. The spherical explosion-proof tank is a sealed container.

    After a large number of tests, it has a strong anti-explosion capability. Even if the explosive exploded in the tank,

    the shock waves and debris generated are blocked in the ball. Good protection,

    effectively prevent the occurrence of an explosion.

Bomb Containment Vessel Functions:

1. Temporary storage of suspicious explosive

2. To prevent the bomb from explosion in public

3. Gas-tight with total containment of chemical and biological agents as well as

    the effects from explosion and toxic materials

4. EOD field and bomb squad

Bomb Containment Vessel Applications:

It is used in railway stations, subways, courts, musems, stadiums, exhibition senters,

airports, customs, ports, embassies, and other explosion-proof places, to ensure the

safety of personnel and maintain the order of the place. Normally, the Explosive Disposal Containers

are equipped at security inspection channels to avoid lawbreakers carrying explosives and

endangering passengers' personal safety.

Bomb Containment Vessel Technical Parameters:

Bomb Containment Vessel Other Specifications:

1. Composed by tank body, tank lid, trawl, mechanical facility for operate lid, foundation,

    Jacking parts, Venting components, Wheels and etc.

2. Manually open/close the cover via external devices; the month of ball tank is vertically upward

3. Cover opened from inside

4. Venting components is made of Seamless steel pipe with diameter 25mm, thickness 2mm;

    one side of the steel pipe is welding with the venting holes, the other side is welding to the bottom of tank

5. Bottom of tank is made of 12mm think steel, its edges made of 3mm steel, and there are 4 wheels at the bottom

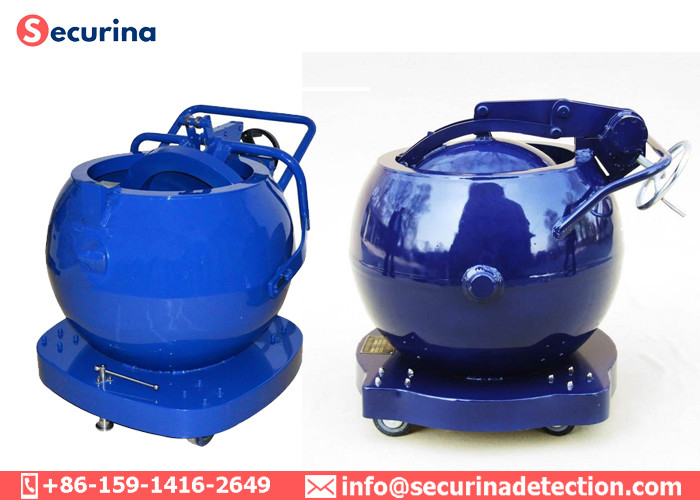

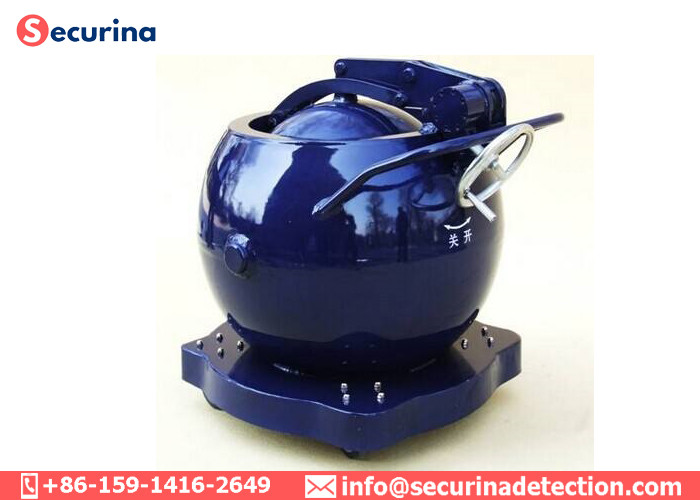

Bomb Containment Vessel Product Picture:
