China Walk Through Security Detector manufacturer

Carbon Steel Ballistic Blanket , Bomb Containment Trailer System

Product Details:
Place of Origin: Guangdong, China
Brand Name: Securina
Certification: FCC-SDoC, CE
Model Number: FBG-2.0
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $48, 000-$50, 000/pc
Packaging Details: Carton or wooden case
Delivery Time: 5-8 working days upon payment confirmation
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Month
Contact Now

Detail Information

Name: Bomb Disposal Device Material: Carbon Steel
Thickness: 35mm Bottom Base Size: 920mm * 830mm * 830mm ( Wide*Deep*Height)
Outer Size: 920mm * 1100mm * 950mm ( Wide*Deep*Height, When Cover Open) Inner Size: 920mm * 1100mm * 910mm ( Wide*Deep*Height, When Cover Closed)
High Light:

bomb disposal equipment

,

bomb disposal unit

Product Description

Explosion-Proof Tank Bomb Disposal Device with Bomb Containment Trailer System



Bomb Disposal Device Description:



Explosion-Proof Tank is a kind of equipment used for temporary storage and

transfer of suspected explosives. It can weaken the explosive power of explosive devices to

protect people and property.



Bomb Disposal Device Applications:



It is used in railway stations, subways, courts, musems, stadiums, exhibition senters,

airports, customs, ports, embassies, and other explosion-proof places, to ensure the

safety of personnel and maintain the order of the place. Normally, the Explosive Disposal Containers

are equipped at security inspection channels to avoid lawbreakers carrying explosives and

endangering passengers' personal safety.



Bomb Disposal Device Technical Parameters:



  Inner diameter

  750mm

  Outer diameter

  820mm​

  Month diameter

  530mm

  Cover diameter

  590mm

  Max open diameter

  320mm

  Venting holes Diameter

  5mm (on body of tank)

  Net weight of the tank

  680kg



Bomb Disposal Device Other Specifications:



1. Composed by tank body, tank lid, trawl, mechanical facility for operate lid, foundation,

    Jacking parts, Venting components, Wheels and etc.

2. Manually open/close the cover via external devices; the month of ball tank is vertically upward

3. Cover opened from inside

4. Venting components is made of Seamless steel pipe with diameter 25mm, thickness 2mm;

    one side of the steel pipe is welding with the venting holes, the other side is welding to the bottom of tank

5. Bottom of tank is made of 12mm think steel, its edges made of 3mm steel, and there are 4 wheels at the bottom

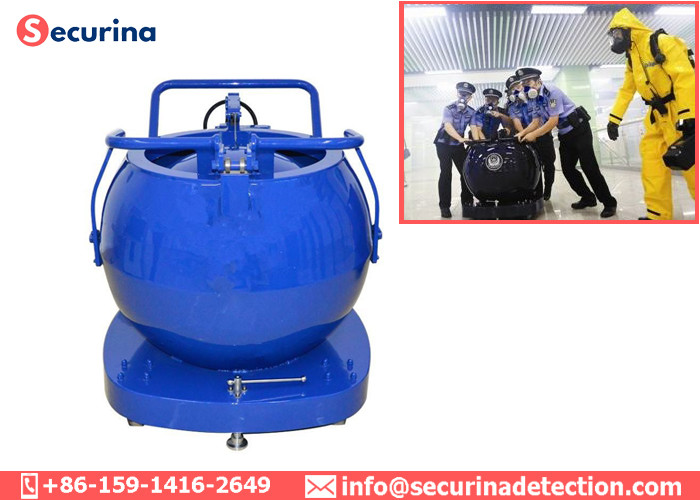

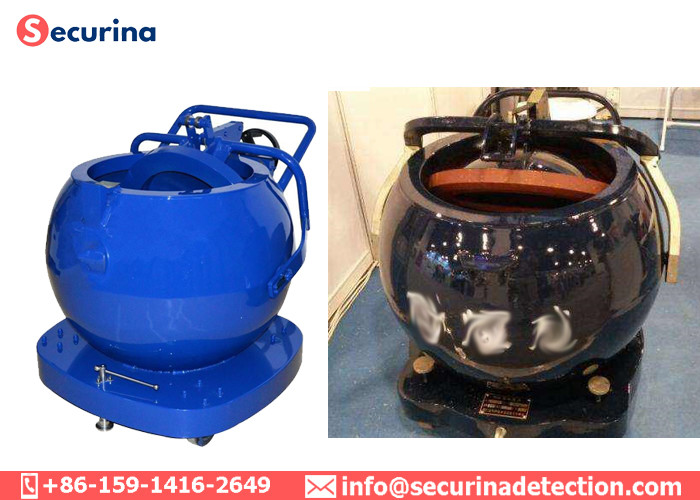

Bomb Disposal Device Product Picture:



Carbon Steel Ballistic Blanket ,  Bomb Containment Trailer System
