4.3 Inch LCD Screen Under Vehicle Inspection Camera Pipe Inspection Equipment

Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number SA430
Minimum Order Quantity 1 piece
Price $299.00 - $599.00/pc
Packaging Details Carton and aluminum case
Delivery Time 5-10 working days after payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 5000 pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Vehicle Undercarriage Inspection Water-proof Grade IP68
Telescopic Search Mini Pipe Inspection Camera Display 4.3inch LCD Screen
Fiberglass Color Black Fiberglass Length 3.6m (standard)
High Light

LCD Screen Under Vehicle Inspection Camera

,

IP68 Under Vehicle Inspection Camera

,

Undercarriage Pipe Inspection Equipment

Leave a Message
Product Description

4.3 Inch LCD Screen Under Vehicle Inspection Camera Pipe Inspection Equipment


4.3 Inch LCD Screen Under Vehicle Inspection Camera Pipe Inspection Equipment 0



Under Vehicle Search Camera SA430 Description:



SA430 under vehicle inspection camera uses a mini pipe camera that eliminates the need of physical devices to detect the destructive & illegal objects. The concerned personnel can inspect the images thus detecting and alerting about such objects and putting off vehicle incidents. The inspection camera captures real-time images that can easily move and check gaps inside. The camera is equipped with 4.3 inch LCD screen, a high-definition flexible hose camera and an infrared light supplement for checking the underside of the vehicle. This under-vehicle search camera can easily operate with video recording for the inspection process, it's not only working for car undercarriage inspection, also can be used in dark environments such as pipelines and tanks, and it is easy to view internal cracks, corrosion, welds, blockages, and other abnormalities..



Under Vehicle Telescopic Search Camera SA430 accessories:



1. Control box: DVR operation buttons, LED brightness adjustable,

Charger time: 5 hours, Running time: ≥200 minutes

2. Light pole:

Pole material: carbon fiber

Joints of telescopic pole: 3 joints

Minimum length: 1080m

Maximum length: 2850mm

Total length : 3600m

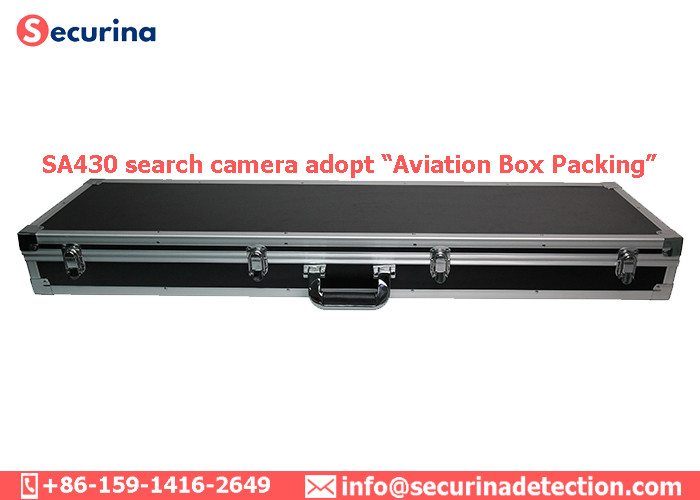

3. Case:

Size: L1145*W250*H125mm

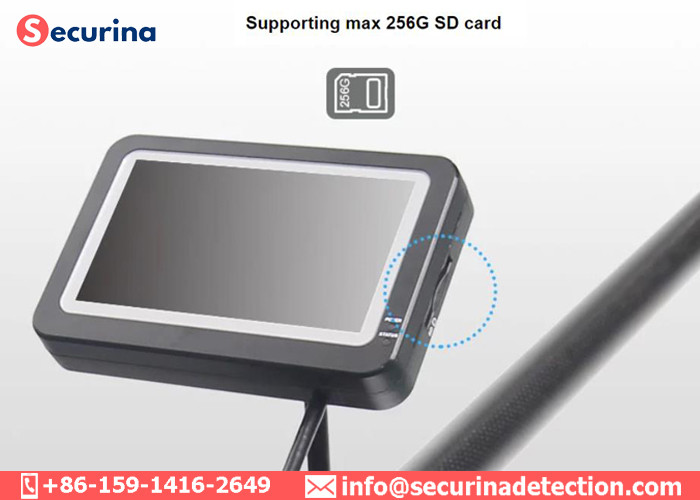

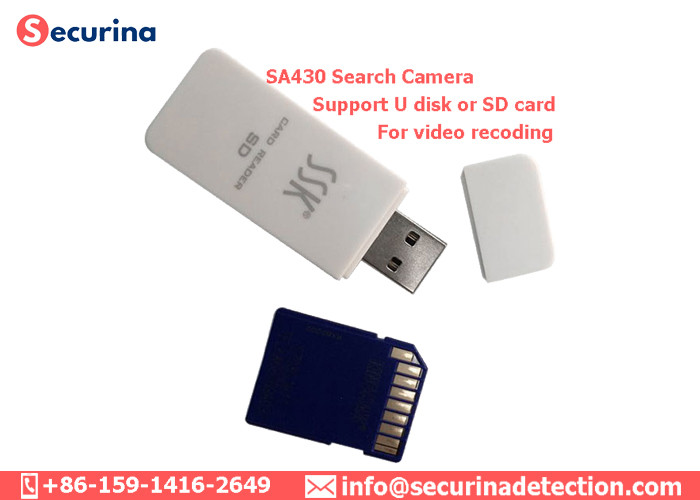

4. Storage medium: 8G SD card (max 256G)

DVR total pixels: 720*576

Movie format: MP4

10 levels digital zoom

Screen size: 4.3 inch TFT color screen



Car Bomb Undercarriage Search Camera SA430 Specifications​:



 Camera Dimension

 23mmx50mm

 Flexible pipe

 500mm

 Camera casing  Stainless steel 304

 Camera lens

 Sapphire blue

 Sensor dimension

 1/4 inch

 Senor pixel

 PAL@720X576/NTSC: 720X480

 Lens visible angle

 120 degrees

 Camera adjustable angle

 Arbitrary angle

 Camera light source  12 LEDs





Securina professional in manufacturing:



1. Airport security screening equpiments, like x-ray baggage scanner, security metal detectors, handheld metal detector, under vehicle surveillance system, search camera, search mirror, liquid scanner, explosive detector, bomb blanket, bomb container, explosion suppression device, etc.

2. Industrial metal detector, conveyor metal detetor, food metal detector, nail detector, needle detector for quality control in factory.





Mini Pipe Telescopic Search Camera Pictures:



4.3 Inch LCD Screen Under Vehicle Inspection Camera Pipe Inspection Equipment 1
