China Walk Through Security Detector manufacturer

219mm Dia. Of Bollards Hydraulic Security Bollards Road Blocking Car Park Barrier

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: Securina
Certification: FCC/CE
Model Number: SA6000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: $10-1000/piece
Packaging Details: cartons packing & wooden case
Delivery Time: About 3-7 working days after Payment receivingd
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000pieces/Year

Detail Information

Material: No.304 Steel Power Supply: AC 220V/380V
Operating Temperature: -35°C~75°C Communication Connection: RS485
Bollard Thickness: 6mm Dia. Of Bollards: 219mm
Control Chip: PLC Control Board Controller: Remote Control/keyboard
High Light:

remote control security posts and bollards

,

304 steel car parking security posts

Product Description

219mm Dia. Of Bollards Hydraulic Security Bollards Road Blocking Car Park Barrier

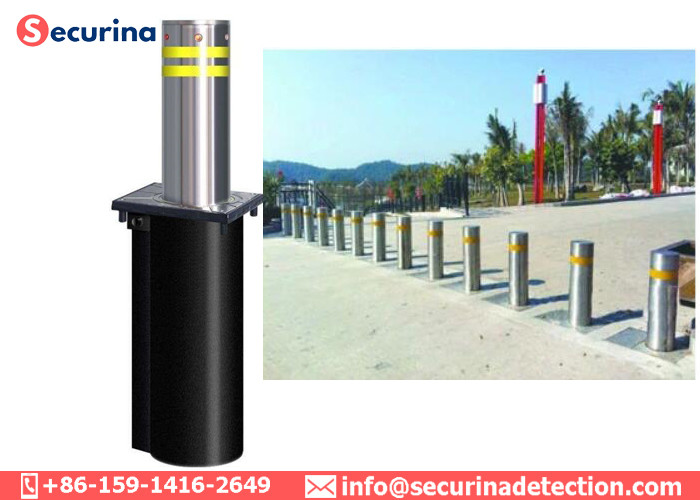

219mm Dia. Of Bollards Hydraulic Security Bollards Road Blocking Car Park Barrier 0





SA6000 fully automatic hydraulic security bollards are used for roads with high safety access control. It has strong impact and impact capabilities. The control box is used to control the lifting and lowering of anti-collision lifting columns. The lifting road piles use high-speed hydraulic units to ensure lifting. The column can be raised and lowered quickly and smoothly.



Features of SA6000 automatic hydraulic lifting bollards:

1. A high-life and ultra-stable hydraulic unit is used to control the lifting piles, so the noise of the rise and fall of the fully automatic hydraulic retractable bollard is extremely low

2. Fully automatic hydraulic rising bollards, the installation is relatively simple and convenient, only need to locate excavation, pre-buried, and place the cable;

3. The cylinder of the fully automatic hydraulic lifting column is thickened 304 stainless steel, with very high corrosion resistance and a high-strength reflective film;

4. Customizable control module, you can set the remote control to raise only one or a designated column, or you can set the remote control to raise multiple columns.

5. You can also set up a customized to control module to achieve remote control and license plate recognition;



SA6000 Parking Block Automatic Retractable Bollards Specifications:



1 Power AC220C/380V, 50/60Hz, Electrical Hydraulic System
2 Operating Temperature

-35°C~75°C

Waterproof, Dustproof

3 Up & down time 3~5 seconds (can be adjustable)
4 Parts of Bollards

1. Bollards Body

2. Control Box

5 Dia. of bollards 219mm ±2mm
6 Communication Distance ≤1200M
7 Bollard Thickness 6mm (can be customized with additional cost)
8

Communication

Connection

RS485
9 Material No.304 steel
10 Color Various color optional
11 Bollard Host Size (Upside Cover Thickness: 20mm) 430x430x110mm
12 Bollard rising height 600mm ( can be customized with additional cost)
13 Bollard outer Antirust painted
14 Bollard warning mark One 5mm highlight reflective band
15 Vibration Reduction Cushion the shock, bollard body not shake
16 Balance guide rail 4pcs Guide Rails with No.304 Steel
17 Unit Bollard Weight 140kgs
18 IP Weather-proof IP68
19 Anti-collision Level K12
20 Max Passing Pressure 100 ton container truck
21 Storage Temperature -10℃~ 65℃
22 Motor Power Consumption 350W
23 Control way Remote control/keyboard
24 Control box size 500(L)*400(W)*200(H)mm
25 Control box installation Indoor installed, can be wall-mounted
26 Control chip PLC Control board
27 Applications School, Hotel, Shopping mall, Park, Government building, Jail, Subway Station, port, Tourism Sports, Exhibition, Residence Area, etc

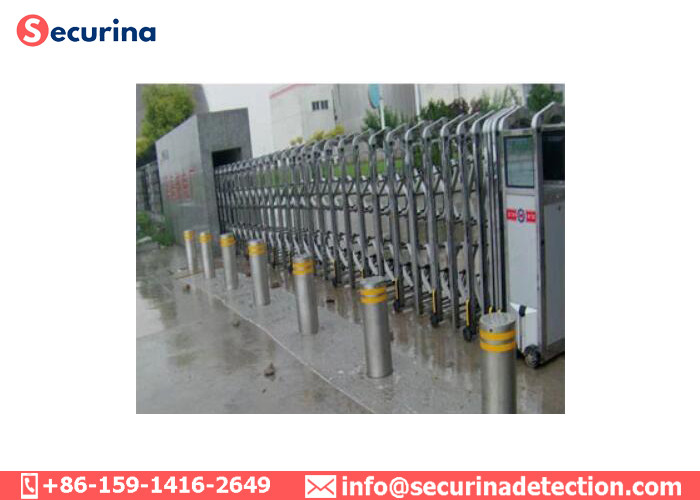

219mm Dia. Of Bollards Hydraulic Security Bollards Road Blocking Car Park Barrier 1



We are one company combined of trading and factory ,Focus on studying and manufacturing security and protection products , with rich experience in trafffic security control system like roadblockers, tire killer, automatic bollards and spike barrier; best production capability ,best quality control, Best Service .100% QC inspection Before Shippment.We try best to reach competitive price on the condition of the same quality.
