IP68 Water-proof Hydraulic Automatic road block barrierTraffic Barricades For Restricted Area

IP68 Water-Proof Hydraulic Automatic Road Block BarrierTraffic Barricades For Restricted Area

Introduction of SA5000 Hydraulic Spike Road Block Barrier:

Their components are mainly composed of three parts: the main frame of the roadblock machine, the hydraulic drive system and the electrical control system:

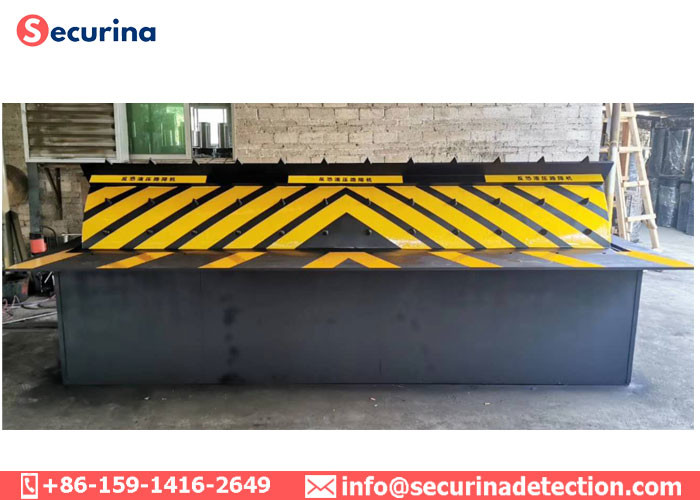

Main frame: The roadblock machine is mainly composed of a flip body or a lifting body and a machine base (anti-collision tooth nails can be added according to customer needs). The whole machine is made of steel structure and welded by national standard 16mm thick A3 carbon steel plate and channel steel. It has high load bearing and anti-collision ability; there are no electrical appliances and circuit settings in the machine body, waterproof and safe. The device is buried in the driveway or the designated position of the gate, and the traffic of the vehicle is restricted by the instructions of the duty personnel.

Hydraulic transmission station: The hydraulic transmission station is mainly composed of an oil tank, a manual oil pump, a full set of hydraulic solenoid valve sets, a high-power motor, an oil pump, an oil cylinder, an oil gauge, a high-pressure hydraulic oil pipe, etc. It is the power source of the entire roadblock system. The device is installed on the roadblock On the side of the machine, it is used in conjunction with the roadblock machine (you can change the ascent and descent speed through the adjustment valve), you can manually lower the baffle when the power fails, or you can manually raise it.

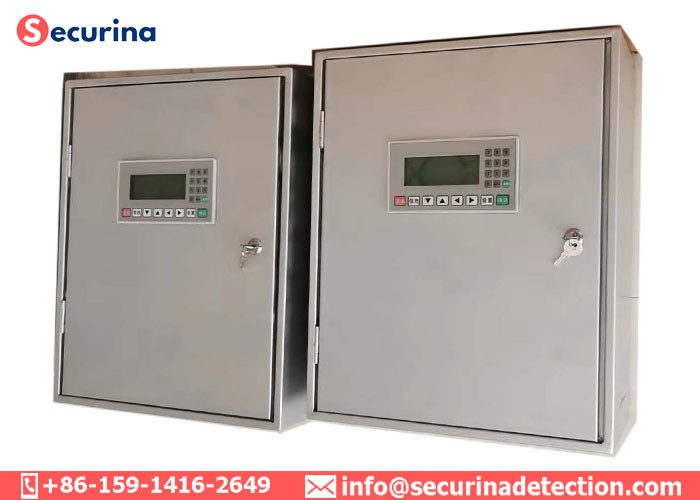

Electronic control system: automatic electronic control part: adopts single-chip PLC/MCU control, leakage current switch, contactless noise high-life contactor and other precise start time settings (impact force generated after the anti-oil cylinder stroke is in place increases the service life of the cylinder).

The roadblock machine is mainly composed of a flip body, a lifting body, and a base, with anti-collision tooth nails 30*60mm, mandatory interception; there are channel steel GB 16, 12 etc. around the center and the load bearing, strong anti-collision ability; the connection is low 3~ 8 50MM rotating shaft activities, simple and flexible operation, hydraulic transmission, smooth, fast movement, low noise, strong traffic capacity, no electrical appliances and circuits in the body, waterproof, safe and reliable.

SA5000 Security Road Blocks Technic Specifications:

SA5000 Hydraulic roadblock machine is a device that controls the passage of road vehicles. The types of roadblock machines can be divided into: overturning roadblock machine (split hair tip/no hair tip), roadblock wall (split hair tip/no hair tip), simple road block machine. The hydraulic drive part can be equipped with vehicle detectors, ground sense coils, infrared sensors, can be used in conjunction with barrier control systems, etc., or can be used alone. It can be used in conjunction with the barrier control system, etc., or it can be used alone; it is specially designed and developed to prevent non-permitted vehicles from forcing in. It has high practicality, reliability and safety; it is suitable for customs, border inspection, treasury, Vehicle access control in special places such as nuclear power plants, airports, logistics, ports and terminals.
