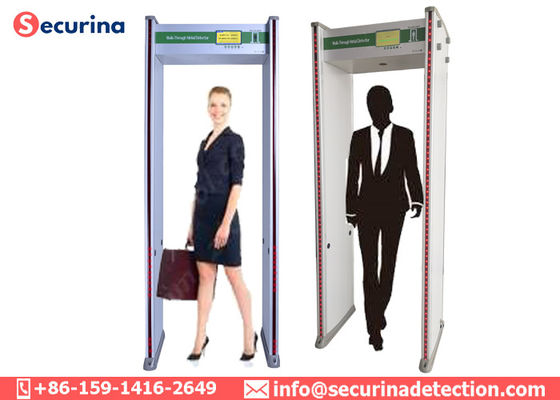

DC 100-240V Adapter Door Frame Metal Detector 7'' LCD Display Two LED Light Bar Alarming

Place of Origin Shenzhen ,China
Brand Name Securina
Certification FCC/CE
Model Number SA300C
Minimum Order Quantity 1 Piece
Price $299~1999/Piece
Packaging Details Carton Box & Wooden Case Packing in two boxes for each unit
Delivery Time About 3-7 working days after Payment receivingd
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 5000pieces/Year
Product Details
Product Name Walk Through Security Detector Display 7inch LCD
Detection Zone 33 Pinpoint Zone Power Supply DC100-240V Adapter
Alarming Two LED Light Bar Warranty 24month, Limited Parts
High Light

metal detector security gate


walk through body scanner

Leave a Message
Product Description

7inch LCD Display Walk Through Security Scanner and Security Archway Power Supply by DC100-240V adapter


Walk Through Security Detector Archway Introduction:


Walk-through security metal detectors work with a special coil in the midst of the machine, as well as on its top and both sides. The coil has a receiver and special transmitters to detect metal materials when someone walks through the archways.


Walk Through Magnetometer Security Detector Features:


  1. Accuracy: It can detect more than 150g copper aluminum, zinc and other metals or controlled knives and guns.
  2. 8/16 / 24 /33zones detect and alarm at the same time
  3. The number of statistics: It could accurately detect the number of passengers.
  4. Metal detector door with anti-shock design: Exclusive worldwide shock design.
  5. Security metal detectors support sensitivity adjustment: it can be adjusted according to the needs, three hundred grade level sensitivity.
  6. On either side of the post lights: both sides have two rows of LED lights, which can be intuitive to show alarm location.
  7. Panel displays: 7 inch LCD screen display by number and alarm and alarm location
  8. Our walk-through security detector can be equipped with a remote control to control the parameters. Parameters can be set password protection.
  9. Reserved communication interface, which can be connected to the computer, camera.
  10. To the electromagnetic interference of various using environments, the whole system adopts the world advanced electromagnetic compatibility design, and uses the DSP processor to calculate and filter to sampling signal of banned items so that the whole walkthrough security detector has a strong electromagnetic anti-interference ability.
  11. Group work frequency can be set, making multiple devices adjacent to work side by side and not interfere each other. It is harmless to the wearer of cardiac pacing, pregnant women and magnetic media

Walk Through Security Detector Arched Door Technical Specifications:


Outer Dimensions  2220 (H) x 820 (W) x510 (D)(mm)
Inner Dimensions  2000 (H) x 700 (W) x 610 (D)(mm)
Net weight  60kgs
Weather-proof  Standard for indoor using, IP55 or IP65 in option
Detection zones  8/6/24zones or 33zones in option
Power supply  100V – 240V 50/60Hz
Warranty  2 Years
Locations quick settings  30
Power consumption  15W
Gross Weight  70kgs
Input  DC by adapter
Sensitivity adjustable

 From Level 0 to 300


Walk Through Security Detector Scanner  Applications:


Exhibition center,  Electronic Factory, Bank, Prison, Tourist attractions , Government office, Hotel etc


Securina metal detection security magnetometer door can be set sensitivity level, in order to detect different sizes of metal objects, according to the occasion and situation needs to be independently debugging, so a product can be applied to a variety of different places


About Securina:


Securina is professional manufacturer, factory, exportor, Chinese supplier for security metal detectors and airport scanners security screening equipments.

The complete range of security inspection system are walk through metal detector, x-ray baggage scanner, handheld metal detector, UVSS, Food metal detector and tyre killer, road blocker, hydraulic bollards.etc

Securina system already supplied to South Africa, Zimbabwe, Nigeria, Cameroon, Sierra Leone, Liberia, Ghana, Malawi, Seychelles, Gambia, Kenya, Ethiopia, Eritrea, Somalia, Lesotho, Swaziland, Sudan, Uganda, Tanzania, Zambia, Namibia, Botswana, St. Helkina.etc African markets.

Also cooperated with customer from Russia, Ukraine, Belarus, Estonia, Latvia, Lithuania, Moldavia, Georgia, Armenia, Azerbaijan, Kazakhstan, Uzbekistan, Kyrgyzstan, Turkmenistan, Tajikistan.etc
