Security Control Archway Metal Detector 7 Inch LCD Display For Mass Events / Public Places

Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number SA300S
Minimum Order Quantity 1 set
Price $299~1999/Piece
Packaging Details Carton or wooden case
Delivery Time 5-10 working days after payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 200 sets/week
Product Details
Function Security Control Application Security Check In Mass Events Or Public Places
Technology DSP Weather-proof IP65
Passing Width 760mm Screen 7inch LCD Display
High Light

metal detector gate


pass through metal detector

Leave a Message
Product Description


Security Control Aarched Metal Detectors Metal Scanner Detectors for Mass Events or Public Places


Arched Metal Detectors​ SA300S Description:


Arched security metal detector with microprocessor control of high reliability for detecting stealthily carried metal objects. The best budget solution for mass events and public places (theaters and cinemas, museums, schools, libraries, office buildings, etc.).

SA300S arched metal detector is a classic arch, consisting of two parallel vertical panels located at a distance of 76 cm from each other. The control and display units are located in the upper part of the arch, which helps to avoid external influences on the cables and undesirable external interference. The panels are resistant to mechanical damage and have impact resistant end inserts. The control unit and the transverse rod are made of hardened aluminum.

Arched Metal Detectors​​ Specifications:


 Input  AC100V~240V    50/60Hz

 Operating temperature

 Storage temperature  -20°C to +60°C
 Outter frame  2210mm (h) x 880mm (w) X 600mm (d)
 Inner frame

 2010mm (h) X 760mm (w) X 600mm (d)

 Net Weight (unit)

 Gross Weight (unit)  100kg
 Each zone sensitivity level


 Highest standard                Metal size ≥ 4 g
 IP Grade  IP65

Optional Accessories or functions of SA300S:
1. Metal Detector Divesting Table:
    For management of personal metal belongings (Standard size: 1000(L)*236(W)*800(H)mm)
2. Metal Detector Feet Wheels:
    For easy moving without disassembly. Different model has different matched type
3. Embedded battery back-up: 4/8/10 hours in optional


Arched Metal Detectors​ Intelligent Program:

1. Self-diagnostic procedures

2. Automatically adapt to the working environment

3. Auto-scan environmental interference at site

4. Shock proof to avoid false alarm

5. Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms

6. Tamper-Proof: operate program is protected by password

Arched Metal Detectors​ Packaging& Delivery:
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
    please contact your local authority for questions related to the amount of duties or taxes
    you will be responsible for.

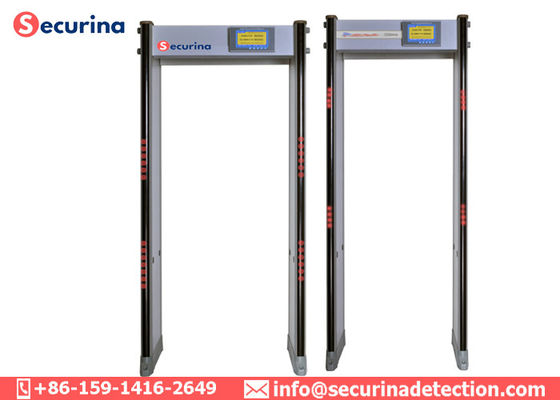

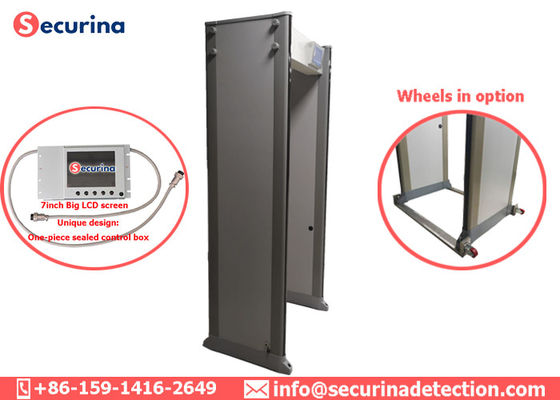

Arched Metal Detectors​ SA300S Picture:
Security Control Archway Metal Detector 7 Inch LCD Display For Mass Events / Public Places 0
