Transport / Storage TNT Bomb Disposal Device Spherical Containment Vessels Long Lifespan

Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number FBG-2.0
Minimum Order Quantity 1 pc
Price $48, 000-$50, 000/pc
Packaging Details Carton or wooden case
Delivery Time 5-8 working days upon payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Bomb Containment Vessel Material Carbon Steel
Thickness 35mm Bottom Base Size 920mm * 830mm * 830mm ( Wide*Deep*Height)
Outer Size 920mm * 1100mm * 950mm ( Wide*Deep*Height, When Cover Open) Inner Size 920mm * 1100mm * 910mm ( Wide*Deep*Height, When Cover Closed)
High Light

bomb disposal equipment


bomb disposal unit

Leave a Message
Product Description


Bomb Disposal Spherical Vessels for Containment, Transport, and Storage TNT


Bomb Containment Vessel Overview:


1. Explosion/Explosive/Bomb Containment Vessel (also named:

    Blast Management Systems, Explosive Blast Containment)

2. Blast Containment Receptacles(also named: explosion-proof tank, explosive storage vessels,

    blast containment bin, blast and fragment containment) is a kind of equipment that can prevent and

    reduce the damage to surrounding people and articles when explosives are exploded.

    According to the shape, it can be divided into two types: barrel type and ball type, also known as

    explosion-proof barrel and explosion-proof ball; according to the actual use, it can be equipped with tractor.

3. Explosion-proof tank (barrel type) is a kind of equipment used to hold explosive devices, and can weaken the

    explosive power to protect people and property. It consists of a triple structure and four anti-explosive materials.

    It is made of stainless steel and has an anti-explosion cover. The triple structure is: outer tank, top cover,

    filling layer (five years should be replaced new one); four anti-explosive materials are: special anti-explosion,

    anti-aging, fire-resistant anti-knocking glue, special fluffy layer. Refractory: PVC sheet, special steel sheet.

    The components are: one piece of explosion-proof cover, one piece of can, one piece of internal net.

4. Explosion-proof tank (spherical) is equipped with four casters under the sphere, which can be moved on a

    flat ground. It is especially suitable for temporary storage of explosives in public places such as airports,

    stations and various venues where people gather. The spherical explosion-proof tank is a sealed container.

    After a large number of tests, it has a strong anti-explosion capability. Even if the explosive exploded in the tank,

    the shock waves and debris generated are blocked in the ball. Good protection,

    effectively prevent the occurrence of an explosion.


Bomb Containment Vessel Functions:


1. Temporary storage of suspicious explosive

2. To prevent the bomb from explosion in public

3. Gas-tight with total containment of chemical and biological agents as well as

    the effects from explosion and toxic materials

4. EOD field and bomb squad


Bomb Containment Vessel Applications:


It is used in railway stations, subways, courts, musems, stadiums, exhibition senters,

airports, customs, ports, embassies, and other explosion-proof places, to ensure the

safety of personnel and maintain the order of the place. Normally, the Explosive Disposal Containers

are equipped at security inspection channels to avoid lawbreakers carrying explosives and

endangering passengers' personal safety.


Bomb Containment Vessel Technical Parameters:


  Inner diameter


  Outer diameter


  Month diameter


  Cover diameter


  Max open diameter


  Venting holes Diameter

  5mm (on body of tank)

  Net weight of the tank



Bomb Containment Vessel Other Specifications:


1. Composed by tank body, tank lid, trawl, mechanical facility for operate lid, foundation,

    Jacking parts, Venting components, Wheels and etc.

2. Manually open/close the cover via external devices; the month of ball tank is vertically upward

3. Cover opened from inside

4. Venting components is made of Seamless steel pipe with diameter 25mm, thickness 2mm;

    one side of the steel pipe is welding with the venting holes, the other side is welding to the bottom of tank

5. Bottom of tank is made of 12mm think steel, its edges made of 3mm steel, and there are 4 wheels at the bottom

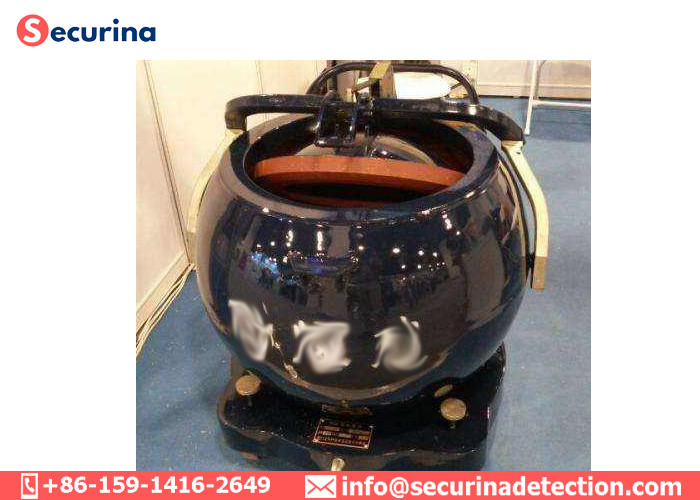

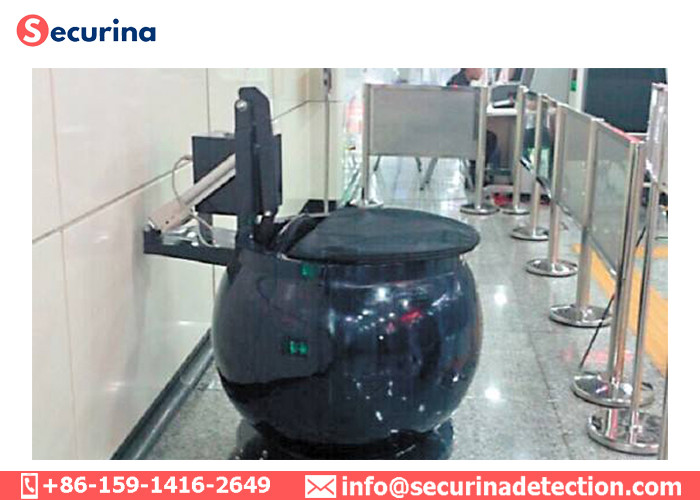

Bomb Containment Vessel Product Picture:


Transport / Storage TNT Bomb Disposal Device Spherical Containment Vessels Long Lifespan 0
