G1610 2.6G CPU Airport X Ray Baggage Scanner For Airport Railway Station Large Parcels
Place of Origin | Guangdong, China |
---|---|
Brand Name | Securina |
Certification | FCC-SDoC, CE |
Model Number | SA100100 |
Minimum Order Quantity | 1 set |
Price | $4999 - $29999/set |
Packaging Details | Carton or wooden case |
Delivery Time | 5-10 working days after payment confirmation |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 5000 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xItem Name | X Ray Baggage Scanner | Tunnel Size | 1000mm×1000mm |
---|---|---|---|
Conveyor Speed | 0.22m/s | Conveyor Height | 338.5mm (adjustable) |
Conveyor Max Load | 200kg | OEM/ ODM | Accepted |
High Light | airport x ray machines,baggage x ray scanner |
X Ray Security Baggage Scanner for Airport Railway Station Large Parcels
X Ray Baggage Scanner Description:
1. X-ray screening detection system, also named: airport security screening equipment,
security x-ray machine, airport scanner, security baggage detector.
2. It's the basic and earliest method for checking contraband hidden inside of baggage or luggage.
3. X-ray is one kind of electromagnetic wave with strong penetrability that can even penetrate
the steel plate with certain thickness. For different inspection objects, it can be divided into
baggage x-ray inspection machine and vehicle/container x-ray scanner.
4. Mainly used for airports, ports, stations, borders, government buildings, jails, police stations,
hotels, banks, shopping malls, churches, schools, large-scale conferences and games,
other security and protection services as well as customs port containers, border vehicle inspections.
X Ray Baggage Scanner working principle:
X - ray security inspection equipment has the baggage handling, X ray source and control part,
signal acquisition and processing and the transmission part and the image processing part and electric control part.
X - ray security inspection equipment will send checked baggage into the crawler channel to complete the
transfer with the help of the conveyor belt. Goods into the channel, detection device and
relevant information will be sent to the control unit, the X - ray source emitting X rays by the control unit triggers.
X ray through the collimator form very narrow fan beam, through the conveyor belt into the luggage on the detector,
the X - ray detector transfers received Xray into the electrical signal.The weak current signal is amplified to quantify ,
Transmitted through the universal serial bus to the industrial control computer for further processing,
and afteroperation imaging processing complex to obtain high quality images.
X Ray Baggage Scanner Features:
1. First dull-digital security detector in China, with clear iamge and strong anti-interference function
2. Embedded Windowx XP operating system, more efficient and stable,
with multi-core ARM CPU, low power consumption, energy conservation,
and environmental protection function
3. Each machine is tested by strict high and low temperaturetest before leaving the factory,
can run for more than 1000 hours without failure.
X Ray Baggage Scanner Operating Environment:
Operating temperature: 5℃ - 40℃
Operating Humidity: 10% - 90% (non-condensing)
Storage Temperature: -40℃ to 60℃
Storage Humidity: 5% - 95% (non-condensing)
Operation Power: 220VAC (±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.3KW (max), 1.0KW (working)
X Ray Baggage Scanner Technical Parameter:
Dimension (L×W×H) |
3638.5mm x1295mm x1916.5 mm |
Device Weight |
900Kg |
G.Weight |
1370Kg |
Control Board |
AIMB 501G2 |
CPU |
G1610 2.6G |
Storage space |
2GB 1600MHz DDR3 Innodisk |
Computer system |
XP system system |
X ray Dose per inspection |
<1.8μSv |
X-ray Leakage |
<0.45 μSv/h (at a distance of 5cm From external housing) |
Penetration |
30 mm steel guarantee, 32mm steel typical |
Wire Resolution |
30 AWG guarantee, 32 AWG typical |
Spatial resolution Level |
Dia1.3mm,Vertical: dia1.3mm |
Power Consumption |
1.3KW (max), 1KW(working) |
Noise | <58db |
Anode Voltage | 140 - 160kv (adjustable) |
Anode power | 0.2-1.2mA |
Generate angle | 80 degree upward |
Generate direct | From bottom to top |
Cooling / Duty Cycle | Oil Cooling /100% |

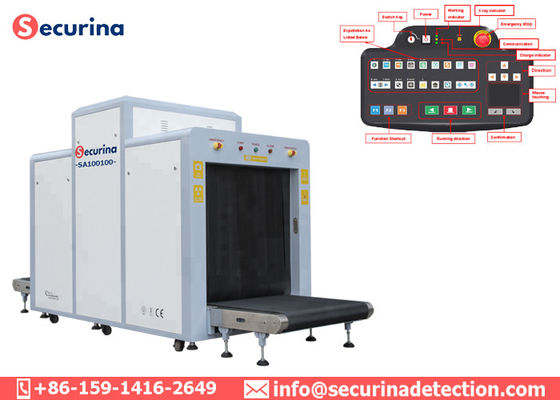

X Ray Baggage Scanner Product Pictures:
