Stainless Steel Traffic Spike Barrier , Secure Tire Killer Anti Collision Warning

Place of Origin Shenzhen ,China
Brand Name Securina
Certification FCC/CE
Model Number SA9000
Minimum Order Quantity 1 Piece
Price $10-1000/piece
Packaging Details cartons packing & wooden case
Delivery Time About 3-7 working days after Payment receivingd
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pieces/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materials Stainless Steel Height 90mm
Blade Thickness 10MM Operating Temperature -35°C~65°C
Application Intercept The Suspect Vehicle And Control The Traffic Panel Thickness 16mm
Interval Of The Spike 150mm Function Traffic Control Tire Killer Road Blocker
High Light

traffic spike barrier

,

automatic spike barrier

Leave a Message
Product Description

2 Second Rise speed Stainless Steel Hydraulic Tyre Killer 90mm Frame Height with Anti-collision Warning

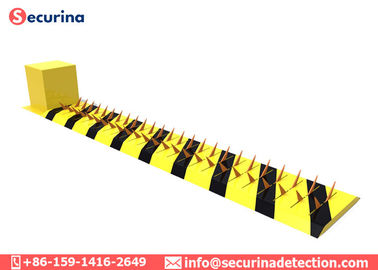

Stainless Steel Traffic Spike Barrier , Secure Tire Killer Anti Collision Warning 0



Hydraulic Tyre Killer Overview



The automatic spike barrier has high visible yellow color making it easy to be seen on dark nights. Tire killer designed with anti-skid surface & proper height control and prevent the vehicle from over speed. Yellow and black color road tyre killer supplying semi-automatic teeth is very easy to operate. Puncture tire spikes security system with loading capacity around 20 tons. Service life over 5 years. Roadway vehicle tyre killer barrier dimension can be unlimited increase by adding middle sections, assembling & installing procedure is easy and simple.



The tire killer is often used in some strict traffic control areas, where need to be blocked and controlled the vehicle enter or exit. Such as government location, police station, military base and some important parking areas. Tips: Spike is very dangerous to humans and cars. Please be cautious while it is being used.



Traffic Spike Barrier Tyre Killer Features



1. Special structure of tire killer:

The core part of the hydraulic unit and the mechanical power mechanism are integrated design, which can effectively transfer the mechanical energy to the hydraulic drive unit, and the action is fast. The hydraulic unit achieves a special design of pressure rise and stable performance, which is rare in the same field at home and abroad.



2. Reliable of spike barrier:

In the event of an emergency such as a power outage, the emergency down button can be turned on by hand, and the barrier cover can be lowered to open the passage and release the vehicle. The upper and lower parts of the internal fixing mechanism are respectively equipped with a current detecting sensor and an electromagnetic sensor, thereby realizing an effective limit of the overcurrent protection and the column action of the power unit, and the operation is stable and reliable.



3. Affordable of tire puncture barrier:

Because the SA9000 spike barrier is a hydraulic transmission integrated mode, it is environmentally friendly, energy-saving, low-consumption, lower failure rate, longer service life and lower maintenance cost. In addition, the use of non-traditional guiding mechanism design, installation and maintenance, is more convenient and quicker



Hydraulic Tyre Killer Barrier Spike SA9000 Technical Parameters



Control system electric
Power 220v (three phase four wire)
System power 500w
Weight capacity 100T
Opening time 1~3s (can be adjustable)
Closing time 1~3s (can be adjustable)
Blade height 128±5mm
Remote control distance: >100m
Operating temperature -35ºC-75ºC
Storage temperature -40ºC-75ºC,waterproof,dustproof
Body size the width of interceptors 3000-16000mm (customized according to customer requirements),the height of clamshell 128 ± 5mm,the height and length of the size can be customized according to customer needs.

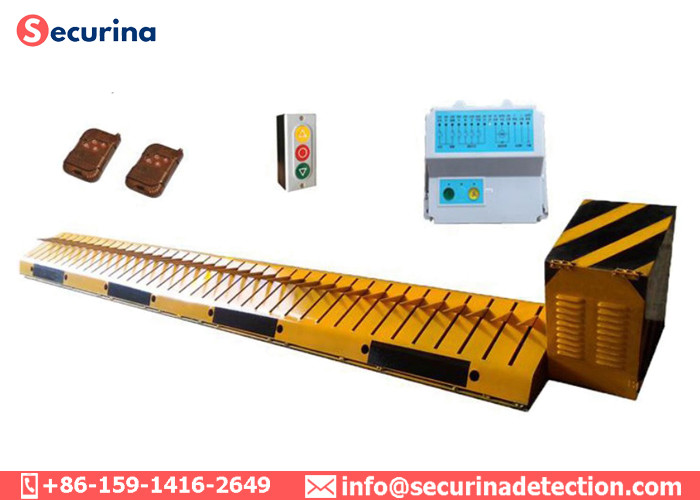

Configuration 1. Mainframe:
Retractor mainly by the flip body, frame composition (anti-collision teeth can be adjusted according to customer needs height). Machine is the steel structure, and it is made of GB A3 steel blade, with high strength load-bearing and crash resistance; body without electricity, no line set, waterproof, safe. The device is buried in the lane or the designated location of the door, to limit the vehicle traffic.
2. Electrical integration remote control device box:
The control box is mainly composed of the motor, the reducer, the gear transmission group, the connecting device, the limit switch and so on. It is the power source of the whole choke system. The device is installed on the side of the choke, Can be changed by electronic control rising and lowering speed), power failure can be manually put anti-collision tooth nails, can also be manually raised.
3. Electrical control system:
Automatic electronic control part: control board, sub-control board, leakage switch, no contact noise high life contactor, precision start time setting (anti-motor stroke in place after the impact force, increase thelife of motor), can be set automatically (From the ground to the coil).
Automatic controller: including control box, remote control, manual button, etc. by the person on duty controlling

Product features: 1.Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&dow
2.Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems.
3.Compatible with road barrier,Turnstiles and other access system control to achieve automatic control.
4.Advanced mature low-speed motor drive technologies,high reliability, security and stability
5.Manual system device, meet fire management requirements (optional)
in the case of a power failure or in the event of failure, if the car is in the rising state of the need to fall, you can manually operate the lifting of the blocker teeth back to the horizontal position, so that vehicles pass.
In the case of a power failure or failure, if the car is in the closed state needs to be lowered, you can manually operate the car can be raised to prevent the vehicle into the strong
6.Remote control device:Remote control system realize wireless control up&down within 100 meters range.
Manual button device: through the security room in the manual switch button control box, the corresponding car drive up and down
7.According to user requirements can be installed the following functions (system support)
Swiping card system: built-in card reader to control bollards up&down
Barrier and car stop linkage: with barrier (block device) / access control, can achieve barrier, access control and carlock linkage.
Connect to the computer tube buried system or charging system: can connect tube embedded system and charge system, computer unified contro
8.Convenient maintenance: when the structure fails or the body is overhauled, the motor control box can be opened , and the corresponding operation can be carried out.



Roadway Barrier Tyre Killer  Applications



Spike road blocker is generally used in vehicle passage control such as customs border inspection, logistics port, prison, Treasury, nuclear power plant, state organs, military base, government key departments, airport and other special places ; Effectively guarantee the purpose of effectively preventing the vehicles from forcefully punching the exit. the traffic order, It effectively ensures the safety of the main facilities and places by restricting the passing vehicles



Hydraulic Tyre Killer Road Barricade Showroom

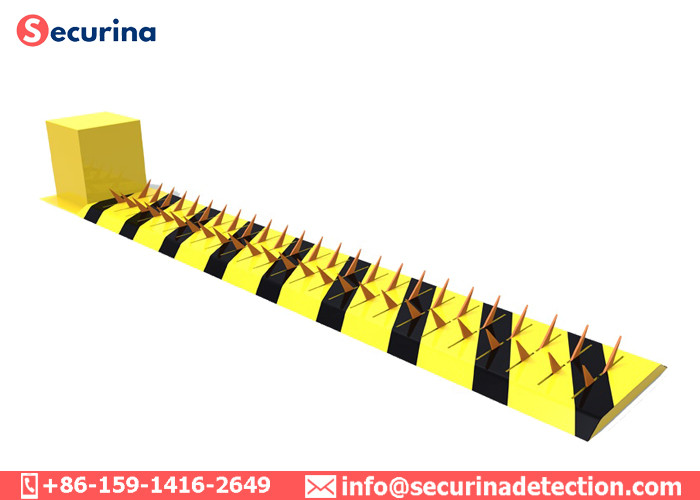

Stainless Steel Traffic Spike Barrier , Secure Tire Killer Anti Collision Warning 1
