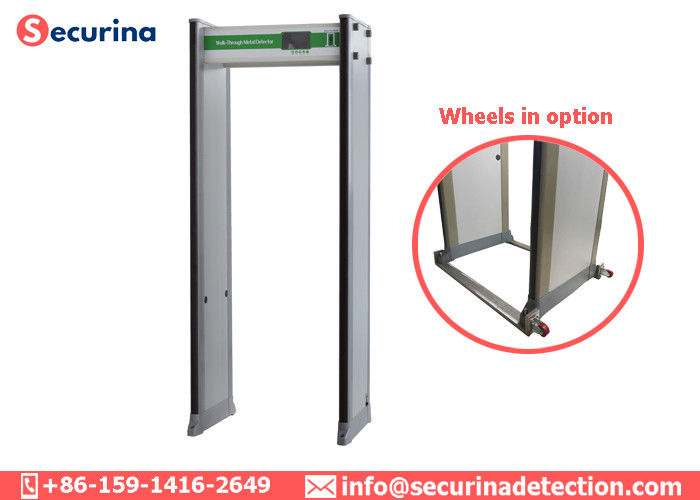

300 Level High Sensitivity Archway Metal Detector 760mm Passenger Channel IP65

Place of Origin Shenzhen ,China
Brand Name Securina
Certification FCC/CE
Model Number SA300S
Minimum Order Quantity 1 Piece
Price $299~1999/Piece
Packaging Details Carton Box & Wooden Case Packing in two boxes for each unit
Delivery Time About 3-7 working days after Payment receivingd
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pieces/Year
Product Details
Product Name Walk Through Metal Detector Gate Sensitivity From 0-300
Operation Way Remote Control And Keyboard Control Dimension 2000mm (h) X 760mm (w) X 600mm (d)
Weather-proof IP65 Tunnel Size 760mm
Application Electronic Factory, Bank, Prison
High Light

body scanner metal detector


pass through metal detector

Leave a Message
Product Description

300 Level High Sensitivity Archway Metal Detector 760mm Passenger Channel IP65


Archway Metal Detector Product Overview


The walk through metal detector is a equipment for detecting metal objects hidden on the human body. It is also called door frame metal detector. The metal scanner can meet the needs of special occasions, such as indoor and outdoor activities with large traffic, sports events, concerts, Exhibitions, etc.


Archway Metal Detector Characteristics

  • High sensitivity digital through-metal detector adopts excellent electromagnetic testing and digital processing technology and has high detection sensitivity to magnetic and non-magnetic metals
  • The front pillar of the walk through security door is fitted with LED lights to indicate the location of prohibited items
  • Digital simulation and left-right balance technology are adopted to prevent equipment from false alarm and non-alarm, greatly improving anti-interference ability
  • At startup, the program self-diagnoses, automatically checks the left and right door panel LED lights and selects the best working frequency
  • Password protection: double password protection, only authorized personnel can operate, you can change the password as needed, and provide password loss recovery settings, more secure

  • Move after folding or move after installation (two ways to move)

Archway Metal Detector Technical Parameters


Detecting areas 45 detection Zones
Light bar LED panel on head box
Display  large 7 inch LCD Screen
Sensitive Level From 0 to 300 Adjustable


passengers and alarm times

Warranty 24 months
Anti-shock Shock proof to avoid false alarm
Alarm way

Sound & LED Alarm

Technology Intelligence DSP technology


About us

  • Securina has 15 metal detector core software technology patents, independent research and development production, can provide ODM and OEM cooperation services
  • Securina has independent research and development ability, and is the representative of advanced technology in the field of metal detection in China
  • Securina implements a complete quality assurance system with quality is life as the production standard and principle, covering the whole process from research and development to manufacturing



Q1: Are you manufacturer or trader?

A:We are a manufacturer and have our own factories in Shenzhen. Our company is a high-tech safety equipment supplier integrating safety testing and protection product development, production and sales services.


Q2: Do you accept customer Logo and customized ?

A:We accept kinds of customized and logo of all of our products for customers


Q3: How to guarantee after sales service ?

A:Strictly quality control with 168hours aging testing before delivery. Maintenance free to save your after-sales cost
