Body Scanning Archway Metal Detector Gate 0-200 Sensitivity Adjustable

Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number SA200
Minimum Order Quantity 1 set
Price $299~1999/Piece
Packaging Details Packing size(head box): 755mm(L)*435mm(W)*255mm(H) Packing size(door frame): 2290mm((L)*635mm(W)*210mm(H)
Delivery Time 5-10 working days after payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 200 sets/week
Product Details
Name Archway Metal Detector Services OEM/ODM
Warranty 2 Years Warranty And 10 Years Parts Supply Availability Self-Diagnostic Program Complete And Automatic
Outter Frame 2230mm (h)*820mm (w)*500mm (d) Inner Frame 2020mm (h) *700mm (w) *500mm (d)
High Light

body scanner metal detector


pass through metal detector

Leave a Message
Product Description

Security Equipment Archway Metal Detector Gate for Body Scanning


Archway Metal Detector Description:
1. Walk through metal detector is a kind of fixed detector, also called the security gate,
     is mainly used to check the hidden metal objects carried on the body.
2. When inspectors walking through the security gate and carrying the metal objects which
    exceeds the default weight, quantity, or shape, the metal detector will alarm and display
    the alarm.
3. It will help the security person find the contraband metal objects.
    As one of the highest tech products currently, our products can induct faster,
    more accurate, with higher sensitivity and stronger anti- interference to meet the needs of different occasions.
Archway Metal Detector Features:
1. Detection speed: more than 60 people pass and detect in 1 minute
2. High Sensitivity: even the metal is thrown through the channel of the detector can be detected
3. The sensitivity of each detecting area can be adjusted from 0-99 independently
4. Small LCD screen, English menu for easy operation and displays the current usage environment interference
    in real time, so as to re-select the operating frequency or re-select the installation environment

Archway Metal Detector Advanced functions:
1. Working frequency: 30 optional working frequency bands, 100,000 historical records can be queried
2. MBSU backup battery (optional)
3. Alarm time setting: 0.5~9s, alarm volume level: 0~20 level adjustable
Archway Metal Detector Specifications:


 System working mode                          IR
 Work environment  -20℃~+55℃
 Alarm way  Audio Alert,and LED Location lamp work at same time

 Battery Packs (optional)

 4/8/10 hours for power supply backup

 Electrical current

 AC100V~240V 50/60Hz
 Power  15W
 Sensitivity adjustable


Archway Metal Detector Applications:
1. VIP member Security, Gymnasium, Commercial buildings, Ships, etc.
2. Court correctional facilityResearch Sites, Sports Stadiums, athletic meeting, etc.
3. Security checkpoints, office building, TV Station, etc.
Archway Metal Detector Packaging& Delivery:
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
    please contact your local authority for questions related to the amount of duties or taxes
    you will be responsible for.
Our Commitment:
1. We believe in everything from start to end, deserves the best quality
2. We believe in being a flexible, customer-oriented partner
3. We believe in delivering value through innovation
If you prioritize our company core value as above, then we’re the most suitable team for you.

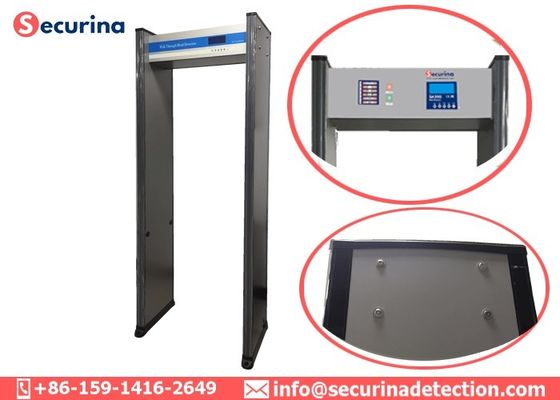

Archway Metal Detector Product Picture:
Body Scanning Archway Metal Detector Gate 0-200 Sensitivity Adjustable 0
