Passenger Scanner Outdoor Door Frame Metal Detector 45 Zones For Security Check

Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number SA600
Minimum Order Quantity 1 set
Price $299~1999/Piece
Packaging Details Carton or wooden case
Delivery Time 5-10 working days after payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 200 sets/week
Product Details
Product Name Door Frame Metal Detector Detecting Zone 45 Zones
Sensitivity Degree 0-300 Technology DSP And Module Construction
Water-proof Level IP65 (option) Operating Temperature -20℃~+55℃
High Light

metal detector body scanner


multi zone metal detector

Leave a Message
Product Description


Passenger Scanner Outdoor Use Door Frame Metal Detector for Security Check


Passenger Scanner Outdoor Door Frame Metal Detector 45 Zones For Security Check 0


Door Frame Metal Detector Description:
Walk through metal detector (also named: door frame metal detector,archway metal detector,
security gate), this kinds of device is mainly used to detect whether the human body carries any
threats metal goods, whether the human body hides knife, gun or explosive, mainly used in airports,
borders, ports, railway stations, subway stations, government buildings, embassies, prisons, courts,
banks, Hotels, churches, schools and other places.
Door Frame Metal Detector Key Features:
1. Central control unit: 7 inch LCD Display, alarm lights, LED bar graphs and
    control touchpads plus all wiring, connections and electronics are integrated into
    the overhead compartment.
2. Entry pacing lights: Smooth, efficient traffic flow with easy-to-view,
    eye-level pacing lights on the entrance side of each panel
3. Two or more gates can work simultaneously
4. 20 optional sound intensities ranging from 0 to 87 dbA at 1m

Door Frame Metal Detector Advanced functions:
1. Detection speed can be adjusted up to up to 15 m/sec.
2. Auto-scan environmental interference at site
3. Quick reset time as short as 0.2 seconds for high throughput rate
Door Frame Metal Detector Technical Parameters​:


 Detecting zones

 45 zones. (60/90 zones accept customization)


 AC100V~240V 50/60Hz

 Power  15W
 Detection speed  more than 60 people pass and detect in 1 minute

 Operating temperature

 Outter frame  2230mm (h) x 820mm (w) X 500mm (d)
 Inner frame  2000mm (h) X 700mm (w) X 500mm (d)

 Net Weight (unit)

 Gross Weight (unit)  90kg
 Sensitivity adjustable


 Warranty  Two years warranty and 10 years Parts Supply Availability

Door Frame Metal Detector Alarm Signalling:
1. Visual Signals:
    Multi-zone display bar for “height on person” localization
    2 LED light bars on front door panels
    Green metering signals proportional to the mass of the detected target
2. Audio Signals:
   16 adjustable continuous and pulsed tones
   20 optional sound intensities ranging from 0 to 87 dbA at 1m
Door Frame Metal Detector Packaging& Delivery:
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
    please contact your local authority for questions related to the amount of duties or taxes
    you will be responsible for.
Reasons of choosing Securina's Door Frame Metal Detector:
1. Detering crime
2. Improving traffic flow
3. Reducing the number of required searches
4. Reducing workload of security personnel
5. Reducing false alarms
6. Increasing Building safety with minimal cost
7. Durable material adoption
Door Frame Metal Detector Product Pictures:

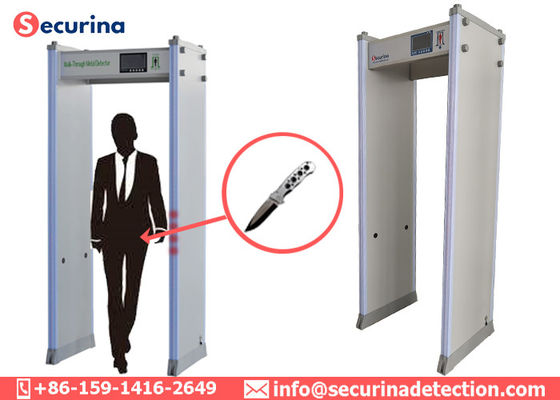

Passenger Scanner Outdoor Door Frame Metal Detector 45 Zones For Security Check 1
