China Walk Through Security Detector manufacturer

IP65 Airport Security Detector Body Metal With Self Diagnostic Program Built In

Product Details:
Place of Origin: Guangdong, China
Brand Name: Securina
Certification: FCC-SDoC, CE
Model Number: SA600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $299~1999/Piece
Packaging Details: Carton or wooden case
Delivery Time: 5-10 working days after payment confirmation
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 sets/week

Detail Information

Product Name: Walk Through Metal Detector Detecting Zone: 45 Zones
Sensitivity Degree: 0-300 Passenger Channal Size: 760mm
Water-proof Level: IP65 (option) Operating Temperature: -20℃~+55℃
High Light:

walk through safety gate

,

metal detector door

Product Description

Airport Security Body Metal Detection Door Gate Detector with Built-in Self-diagnostic Program


IP65 Airport Security Detector Body Metal With Self Diagnostic Program Built In 0




Airport Security Detector Description:

Walkthrough metal detector provides enhanced performance and special program selections engineered to
meet the varying security requirements of schools, stadiums, government buildings, mass transit,
nightclubs, prisons, airports, entertainment venues, loss prevention, and special events.


Airport Security Detector Advanced functions:

1. Detection speed can be adjusted up to up to 15 m/sec.
2. Auto-scan environmental interference at site
3. Quick reset time as short as 0.2 seconds for high throughput rate

Airport Security Detector Technical Parameters​:



 Detecting zones

 45 zones. (60/90 zones accept customization)

 Input

 AC100V~240V 50/60Hz

 Power  15W
 Detection speed  more than 60 people pass and detect in 1 minute

 Operating temperature

 -20℃~+55℃
 Outter frame  2230mm (h) x 820mm (w) X 500mm (d)
 Inner frame  2000mm (h) X 700mm (w) X 500mm (d)

 Net Weight (unit)

 70kg
 Gross Weight (unit)  90kg
 Sensitivity adjustable

 0-300

 Warranty  Two years warranty and 10 years Parts Supply Availability


Airport Security Detector Alarm Signalling:

1. Visual Signals:
    Multi-zone display bar for “height on person” localization
    2 LED light bars on front door panels
    Green metering signals proportional to the mass of the detected target
2. Audio Signals:
   16 adjustable continuous and pulsed tones
   20 optional sound intensities ranging from 0 to 87 dbA at 1m

Airport Security Detector Packaging& Delivery:

1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
    please contact your local authority for questions related to the amount of duties or taxes
    you will be responsible for.

Reasons of choosing Securina's Airport Security Detector:

1. Detering crime
2. Improving traffic flow
3. Reducing the number of required searches
4. Reducing workload of security personnel
5. Reducing false alarms
6. Increasing Building safety with minimal cost
7. Durable material adoption

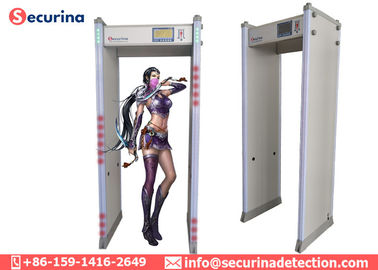

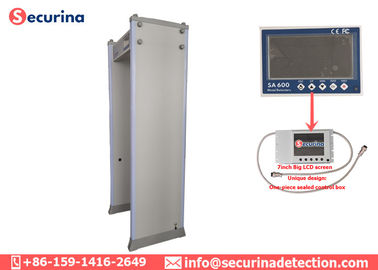

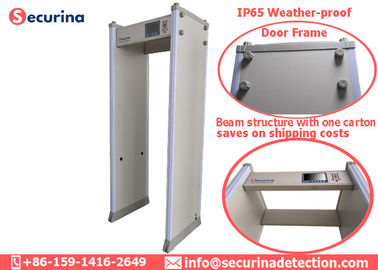

Door Frame Metal Detector Product Pictures:

IP65 Airport Security Detector Body Metal With Self Diagnostic Program Built In 1
