50*30Cm Security X Ray Inspection System With Single Energy Scanning Image

Place of Origin Shenzhen ,China
Brand Name Securina
Certification FCC/CE
Model Number SA5030A
Minimum Order Quantity 1 Piece
Price $4999 - $29999/set
Packaging Details wooden packing
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 800 Set/Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Security X-ray Inspection System Image Max Resolution 1024 * 1280 Pixel
Steel Penetration 8-10mm Armor Plate Channel Size 50(W)*30(H)cm
Conveyor Max Load 100kg Scanning Image Single-energy
High Light

1KW X Ray Inspection System

,

1.0mA X Ray Inspection System

,

1024*1280 Pixel Baggage Inspection System

Leave a Message
Product Description

50(W)*30(H)Cm Security X-Ray Inspection System With Single Energy Scanning Image



50*30Cm Security X Ray Inspection System With Single Energy Scanning Image 0



Security X-ray Inspection System Introduction:



Security x-ray inspection system is widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.Model characteristics and configuration: All parts imported , clear image, strong penetrating power, long service life, using the latest international standards.



Working principle: Equipment complete the examination by means of that belt making the baggage into the X-ray inspection lanes. Baggage into the X-ray checkpoint to stop the package detection sensor,the detect signal was sent to the system control part to generate X-ray trigger signal,. After a bunch of X-ray fan-shaped collimator beam passing through the items on the belt, X-rays were absorbed by seized items, finally, single-energy semiconductor detectors installed in the channel. The X-ray into the signal through detector, these weak signals are amplified and sent to the signal processing box for further processing.





Security X-ray Inspection System Advantages:



1. Alarm by sounds & light::Alarm by sounds and light when conform to condition.

2. Network interface:Could be connect local area network and support multi-terminal check baggage at same times

3. Safety ray:Transmit ray under automatic control, avoids the miss

4. Image monitoring for user-friendly:The monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.

5. Simple operation by mouse:Without keyboard and work table, control by mouse, save space.

6. Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.

7. Eagle-eye:Could be expediently observing enlargement area.

8. Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.



Security X-ray Inspection System Specifications:



Power Consumption 1.0 KW (max), 0.3KW(working)
Image Processing 24bit for processing real time
Cooling / Duty Cycle Oil Cooling /100%
Noise <55dB
Continuous hard work time for 10000 hours
Dose per Inspection  <2.9μ Gy/h
Resolution <0.101mm Metal Wire
Spatial resolution  Level: Dia1.0mm, Vertical: Dia1.3mm
Anode power  0.2 to 1.0mA
Display High Resolution Color, LCD Accord, 17 inch



Security X-ray Inspection System Applications:



The Securina SA5030A x-ray inspection equipment is recommended to be installed at various checkpoints, including government buildings, private hotels and corporate mail rooms. A compact frame and four heavy-duty roller casters make the SA5030A easy to relocate to any location for instant inspection

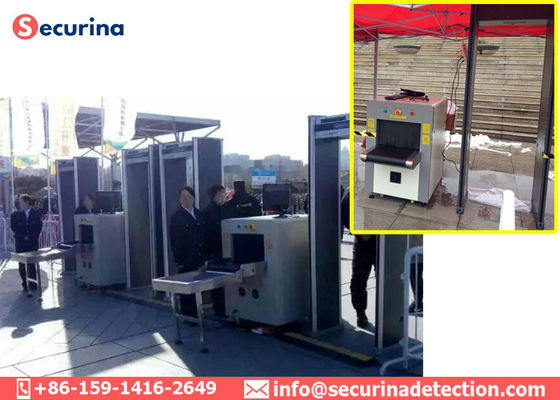

SA5030A Security X-ray Inspection System Picture:

50*30Cm Security X Ray Inspection System With Single Energy Scanning Image 1
