Single Energy Parcel X Ray Baggage Scanner 0.22m/s SA5030A For Hotels / Church

Place of Origin Guangdong, China
Brand Name Securina
Certification FCC-SDoC, CE
Model Number SA5030A
Minimum Order Quantity 1 set
Price $3999 - $29999/set
Packaging Details Carton or wooden case
Delivery Time 5-10 working days after payment confirmation
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 5000 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applications Hotel, Church, Banks X Ray Imaging Single-energy, Pseudo Color Display
Conveyor Speed 0.22m/s Conveyor Height 668mm
Conveyor Max Load 60kg Warranty Two(2) Years
High Light

airport x ray machines

,

baggage x ray scanner

Leave a Message
Product Description



SA5030A Single-energy Parcel and Baggage Inspection X Ray Security Scanner for Hotels and Church




X Ray Baggage Scanner Technical Parameter:



 Dimension (L×W×H)

 1660mm x746mm x1165 mm

 X Ray Scanner N.Weight

 350Kg

 G.Weight

 400KG

 Control Board

 IMX6_mainboard-V030

 RAM

 1 G

 CPU

 Cortex A9

 Storage space

 500GB

 Computer system

 LINUX system



X Ray Security Scanner other Specifications:


X ray Dose per inspection: <0.1.25μSv

Wire Resolution: 38 AWG typical

Spatial resolution Level: dia1.3mm,Vertical: dia1.6mm

Penetration: 6-8mm steel

Penetration Resolution: Guarantee 32AWG

Film Safety: Guarantee ASA/ISO1600 Film

X-ray Leakage: <2.0 μSv/h (at a distance of 5cm From external housing)

Cooling / Duty Cycle: Oil Cooling /100%

Detect PCB board: UK brand Sensortech

Extension Rollers: customize size length

UPS: 15mins, 30mins, 60mins etc, optional



X-ray Generator:



Anode Voltage: 80kv

Anode power: 0.35mA

Generate angle: 80 degree upward

Brand: Made in China

Generate direct: from bottom to top



X Ray Baggage Scanner Operating Environment​:



Operating temperature: 0℃-40℃

Operating Humidity: 10%-95% (non-condensing)

Storage Temperature: -20℃to 60℃

Storage Humidity: 5%-95% (non-condensing)

Operation Power: 220VAC (±15%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)

Power Consumption: 1.0KW (max), 0.7KW (working)



X Ray Security Scanner Markets:



Our security screening systems have been exported to overseas for more than 10 years.

The products have been exported to Europe, South America, Africa, Middle East, Asia,

and in Spain, Turkey, Saudi Arabia, United Arab Emirates, Colombia, Peru, Nigeria, Kenya, Russia,

Kazakhstan, Pakistan, Philippines, Malaysia have established joint after-sales service centers.

Securina is equipped with sufficient inventory and fast delivery time in 5-7 working days.


X Ray Security Scanner Image Process :



1. Image Enhancement: 1-32times enlargement continuity, negative,general enhancement,etc

2. Image Recall: All preceding images recallable, retrieva

3. High Density Region Alarm: Impenetrable region alarm and highlight,

for possible concealing of threats and contrabands

4. Threat Image Projection: Inserting fictional, but realistic images of threat items into

baggage during screening operation, for maintenance of vigilance, as well as training and

assessment of image identification capability

5. Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and

converting to JPG

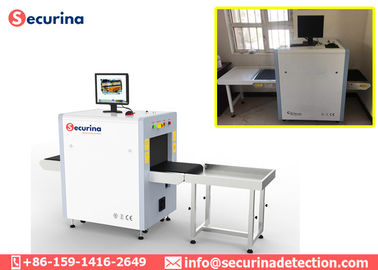

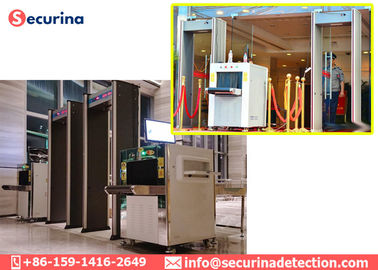

X Ray Security Scanner Product Pictures:



Single Energy Parcel X Ray Baggage Scanner 0.22m/s SA5030A For Hotels / Church 0
